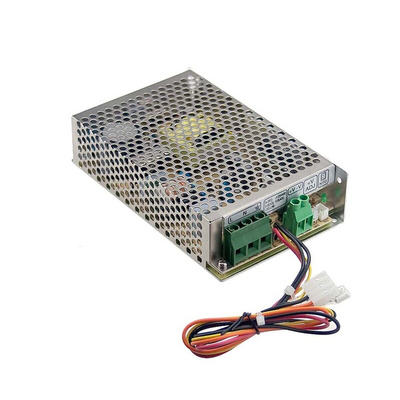

MEAN WELL Switching Power Supply, SCP-75-12RS, 13.8V dc, 5.4A, 74.5W, 1 Output, 120 → 370 V dc, 85 → 264, Источник питания

Mean Well Switch Mode Power Supply

The Mean Well SCP-75 series 74.5W single output AC to DC embedded switch-mode power has an output current rating of 5.4A at 13.8VDC. It has a universal input supply voltage rating from 85VAC to 264VAC and 120VDC to 370VDC.
Note:
MTBF to MIL-HDBK-217F (25°C)
Date power above 50°C operating temperature

Features and Benefits

Short circuit protection
Overload protection
Overvoltage and battery polarity (by fuse) protection
Cooling by free air convection
Full load burn-in test
LED indicator for power ON
No load power consumption less than 0.75W

Applications

Security systems
Access control systems
Emergency lighting systems
Alarm systems
Central monitoring systems

Certifications

UL60950-1
CB(IEC60950-1)
CCC GB4943 approved (35W and 75W model)
EN55022 (CISPR22) class B (EMC)
EN61000-3-2,-3 (harmonic current)
EN61000-4-2, 3, 4, 5, 6, 8,11
ENV50204
EN55024
EN61000-6-1
Criteria A

SCP-75 Series specification sheet

Declaration Of Conformity
