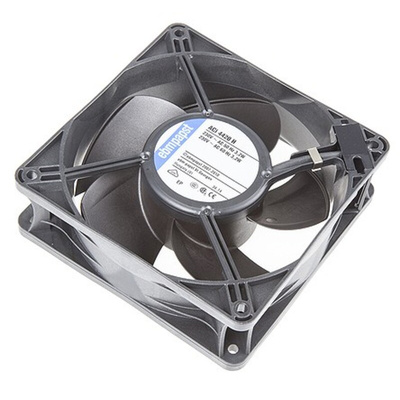

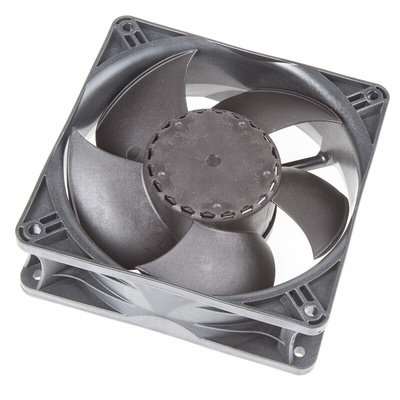

ACI4420H, ebm-papst ACi 4400 Series Axial Fan, 230 V ac, AC Operation, 160m³/h, 3.3W, 119 x 119 x 38mm, Вентилятор

ebm-papst AC Axial Fan

The ebm-papst AC axial fan utilises motor with GreenTech EC technology offering enhanced performance with a fraction of the energy usage of conventional motors. The fan has 3000rpm motor speed. These units are equipped with maintenance-free ball bearings and have a service life of (62,500 hours at 40°C). The ebm-papst AC fans provide a flexible and dependable cooling solution for applications that lets you mount it in any axial position. The fan has a power consumption rating of 3.3W and a supply voltage rating of 230VAC

GreenTech EC Technology
GreenTech EC refers to the motor used in multiple series’ of fans from the ebm-papst range. These motors have been specifically developed to offer maximum energy-efficiency and enable the equipment to be as economical as possible. This gives a reduction in operating costs while still giving improved performance over conventional motors. They also set a new standard in reliability and service life further reducing any operating and maintenance costs.

Features and Benefits

Energy-efficient AC fan with EC technology
Conversion and drive electronics fully integrated
Long service life
Fan speed not dependent on line frequency
Electronic locked rotor protection
Operating temperature ranges between -20°C and 75°C

Certifications

UL approved
CSA
VDE

ACI4420H Datasheet
