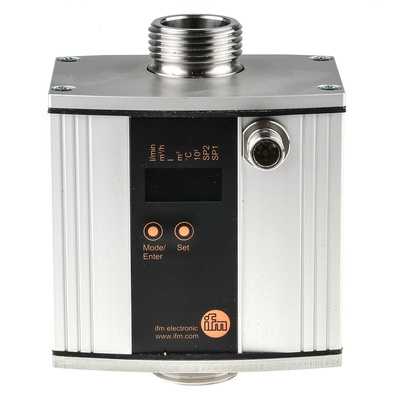

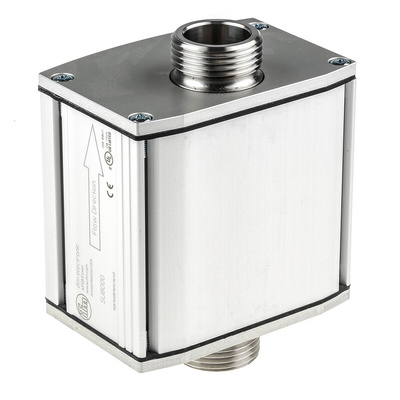

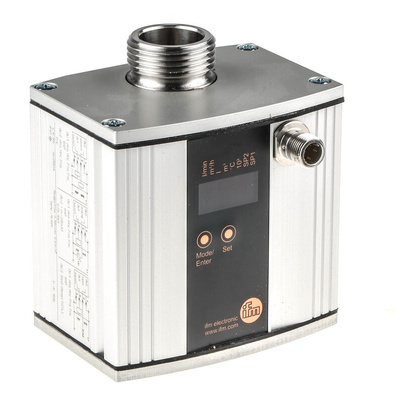

SU8000, ifm electronic SU Series Ultrasonic Flow Meter for Liquid, 0 L/min Min, 100 L/min Max

ifm electronic Flow Meter

The ifm electronic SU series electronic ultrasonic flow meter measures the liquid flow rate of 0L/min to 100L/min. The flow metre monitors liquid media such as water, glycol solutions, or industrial oils. It detects the 3 process categories, namely volumetric flow quantity, consumed quantity and medium temperature. The user can access and adjust the peak consumption, present consumption, or accumulated consumption via programmed switch and alarm level settings, all at the touch of a button.

Note:
Threaded (or push-fit) connecting adapters are not included with the volumetric flow sensor
Suitable connectors may be sourced (depending on the type required), for example, a G3/4 male to G3/4 female adaptor (RS stock no. 807-766), or similar

Inclusions:
2 packing washers.

Features and Benefits

Connection type is 1 BSP
Maximum operating pressure is 16bar
Maximum operating temperature is 60°C
Required supply voltage range is 19VDC to 30VDC

High accuracy, repeatability and measurement dynamics
Clearly visible LED display
It has volumetric flow quantity, total quantity and temperature indication
The process connection is G flat seal
The units feature 2 switching outputs that can be programmed as normally open or normally closed
For consumed quantity monitoring, the other output transmits counting pulses to the controller
The robust stainless steel housing and high protection rating provide high security even in harsh environments
Depending on the volumetric flow quantity to be detected, devices with different process connections are offered

Certifications

CE certified
UL listed
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
DIN IEC 68-2-27
DIN IEC 68-2-6

SU8000 Ultrasonic Water flow meter
