LMT110, ifm electronic Electronic Level Probe PNP NO/NC Output

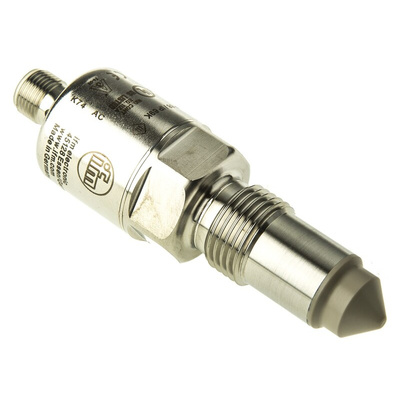

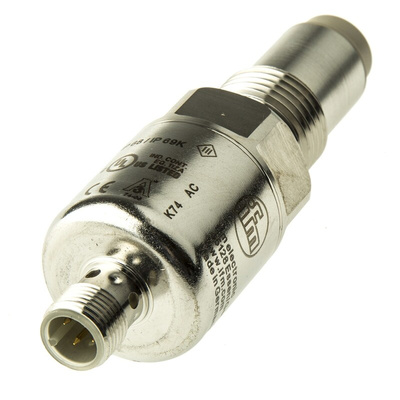

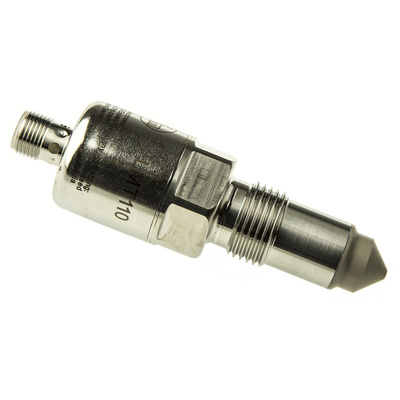

IFM Electronic Level Probe

The ifm electronic level probe has a supply voltage of 24VDC. It is used in flush mounting, discrete level sensors for liquid, powder and oil. Its compact sensor tip allows integration even in small DN25 pipes. The factory setting to different fluid types eliminates the need for an adjustment. This point level sensor is characterised by a hygienic design with the maintenance-free sealing concept. G 1/2 male is the perfect solution for limit monitoring of tanks and running-dry protection of pumps in the food and process industries as well as for level detection on storage tanks.
Note:
Stock number 7406446 is a suitable oil sensor
Caution:
For health and safety reasons, do not use this sensor in the incorrect media

Features and Benefits

Used in liquid and viscous media and bulk materials
Differentiation of media by parameterisation of the switching outputs
Reliable suppression of deposits or foam
Process connection is G A
Gold-plated contacts
Probe length is 11mm
Has 2 switching outputs
Maximum current of 50mA

Applications

For the reliable level control in tanks and containers
Food and beverage industry

Certifications

CE certified
UL approved
IP 68/IP 69K rated
IEC 61000-6-2
IEC 61000-6-4
IEC 61000-6-3
IEC 60068-2-27
DIN EN 60068-2-6
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
