P01196731, Chauvin Arnoux CA 5231 Handheld Digital Multimeter, True RMS, 600A ac Max, 600A dc Max, 1000V ac Max, Мультиметр

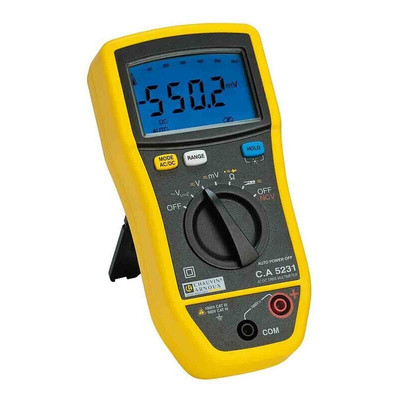

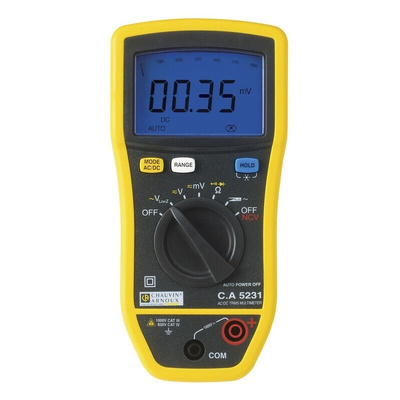

Chauvin Arnoux CA5231 True RMS Digital Multimeter

The Chauvin Arnoux CA5231 true RMS digital Multimeters are ideal for the needs of electrical installers, self-employed electricians and heating or air-conditioning specialists. Compact and simple, they are exceptionally easy to read thanks to their large backlit display including a bargraph count of 6,000. Their built-in shockproof protection also makes them rugged instruments.
There are two "Off" positions for greater effectiveness, including one which allows no-contact voltage detection. The screen lights up when near to a live cable. If it is hooked up to a current clamp, it can measure currents up to 600 A in total safety.
The Chauvin Arnoux CA5231 is designed for carrying out general electrical measurements, enabling users to test AC/DC voltage (this includes LowZ voltage), AC/DC current, resistance and tests continuity and diode.

What are the key features of the Chauvin Arnoux CA5231 Digital Multimeter?

• CAT IV 600V / CAT III 1,000V
• TRMS measurements
• Large 6,000-count backlit display (digit height: 8 mm)
• 61-segment bargraph
• Compact casing with built-in shockproof protection
• Double OFF position
• NCV (no-contact voltage detection)
• VLow Z low-impedance voltage measurement to avoid stray voltages.
• Measurement up to 1,000 V
• 60mV range
• AC or DC current measurement up to 600 A with current clamp (1mv/A AC or DC) with direct reading of the measurement in Amperes
• IP54
• Compatible with the multi-function mounting accessor

What are the typical applications?

• Electrical installers
• Electricians
• heating & air-conditioning specialists

What’s included?

• The CA 5231 Digital Multimeter
• 2 measurement leads equipped with test probes
• 9 V alkaline batter
• Operating manual

Chauvin Arnoux

5231/33 Datasheet

User's manual CA 5231
