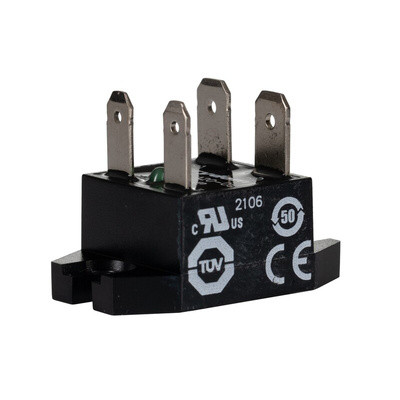

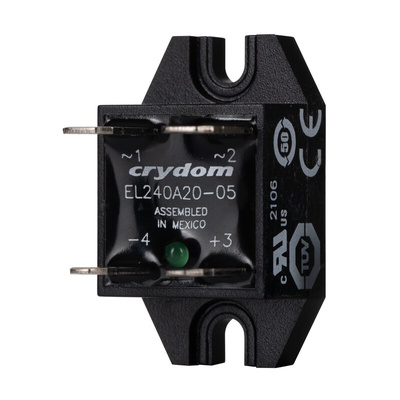

EL240A20-05, Sensata / Crydom EL Series Solid State Relay, 20 A Load, Panel Mount, 280 V ac Load, 8 V dc Control, Реле

Sensata | Crydom Solid-State Relay, 20A Current Rating, 8pF I/O Capacitance - EL Series - EL240A20-05

Take command of electrical loads in your industrial equipment with this Sensata | Crydom solid-state relay. It switches connected machinery on and off for automated control. Thanks to its 20A current rating, you can count on this unit in heavy-duty applications. The plastic housing gives you a two-for-one advantage, as it offers resistance to impact while also providing effective insulation for increased safety. To keep things cool, this SSR comes with a thermal pad for efficient energy transfer to a heat sink. You'll find a device like this one used for coffee machines, HVAC systems and utility meters.

Features & Benefits

• Green LED status indicator for ease of monitoring
• Quick-connect terminals for speedy and simple installation
• Performs reliably in challenging settings, as it has a wide operating temperature range between -30°C and +80°C
• Low I/O capacitance of 8pF to ensure high-integrity signal transmission

How large is this SSR?

This component has compact dimensions of 36.6 (L) x 22.3 (W) x 14.3mm (D), helping to maximise space in crowded setups.

Crydom Solid State Relay and Accessories

E116950 UL Report

Declaration of Conformity 2014/35/EU

CE_EL240A20-05_1.252019A

reliability-prediction-for-crydom-products

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Datasheet - EL240A20-05

Instruction Sheet - EL240A20-05

Line Drawing - EL240A20-05
