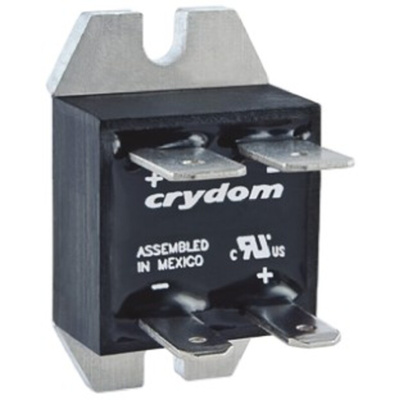

EL100D10-05, Sensata / Crydom EL Series Solid State Relay, 10 A Load, Panel Mount, 100 V dc Load, 8 V dc Control, Реле

Sensata | Crydom Solid-State Relay, 10A Rated Load Current, 4 to 8V DC Control Voltage Range - EL Series - EL100D10-05

Switch to an effective control solution for your industrial operations with this solid-state relay from Sensata | Crydom. It has a wide load current range of 0.15 to 10A, so it allows you to charge ahead with both low and high-power applications. As it has no moving parts, it won't be worn down by constant switching, so it's built to last. You can use it for a wide range of industrial equipment, including pumps, compressors and motors.

Features & Benefits

• Wide operating temperature range of -30°C to +80°C for use in demanding environments
• Quick-connect terminals for hassle-free installation
• Light weight of 14.4g to place minimal strain on your equipment
• Maximum turn-on time of 1ms and turn-off time of 300μsec for rapid switching
• Operating voltage range of 3 to 100V DC for use in low-power systems

How large is this relay?

The unit has compact dimensions of 35.6 (L) x 21.1 (W) x 14.3mm (H), so it won't take up too much space on your panel.

DC Switching

EL Series Solid State Relay 100Vdc, 10A

E116950 UL Report

Declaration of Conformity 2014/35/EU
