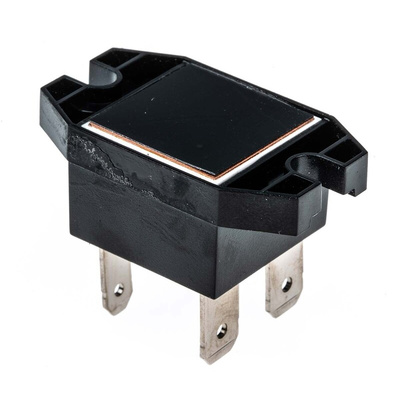

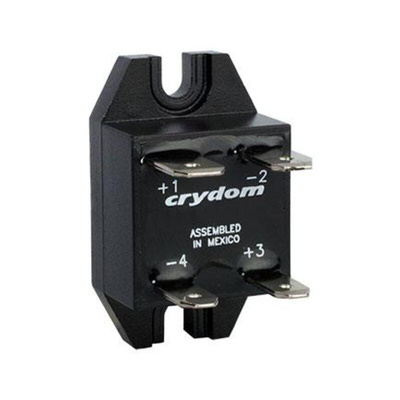

EL100D10-24, Sensata / Crydom EL Series Solid State Relay, 10 A Load, Panel Mount, 100 V dc Load, 27 V dc Control, Реле

Sensata | Crydom Solid-State Relay, 21.1mm Width, 10A Rated Load Current - EL Series - EL100D10-24

Looking for a simple on/off solution for your industrial operations? Switch things up with this solid-state relay from Sensata | Crydom. Thanks to its wide operating temperature range between -30°C and +80°C, it's just the thing for use in harsh industrial environments. The device's compact dimensions of 35.6 (L) x 21.1 (W) x 14.3mm (H) make it a great fit for areas with limited space. As it has a rapid turn-on time of 1ms, the relay will switch on at the drop of a hat. Use this relay in motor control and manufacturing applications.

Features & Benefits

• Wide load current range of 0.15 to 10A for versatility
• Operating voltage range of 3 to 100V DC for use in low-voltage systems
• Quick-connect terminal for simple wiring

What are the benefits of a MOSFET output?

MOSFET is a type of transistor that can handle high current and voltage loads. It's known for its fast switching times, high efficiency, and low on-resistance, which means less power is wasted as heat.

DC Switching

Datasheet

E116950 UL Report

Declaration of Conformity 2014/35/EU
