Fluke TL175 Test Lead Kit, CAT III, CAT IV, 10A, Щупы для мультиметра

Fluke TL175 TwistGuard Test Leads, 2mm diameter probe tips

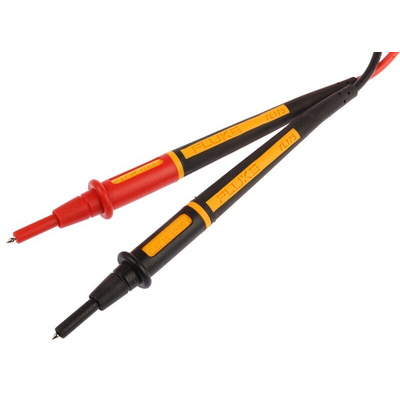

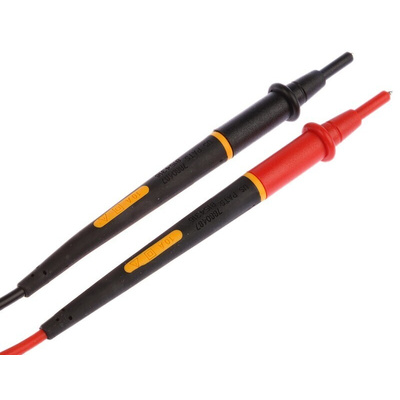

Fluke TL175 TwistGuard Test Leads are the only test leads available with adjustable length test tips for use in different measurement environments. Twisting the test lead changes the exposed probe tip length from 19 mm to 4 mm. All models are highly reliable and excellent quality.

Features & Benefits

Extendable tip – reduces tip exposure to meet new electrical safety requirements
Each test lead covered by two layers of silicone insulation – New WearGuard, inner contrasting colour is exposed when the leads are damaged and need replacing
Extra-heavy strain relief on probe-end and plug-end – tested to 30,000 plus bends

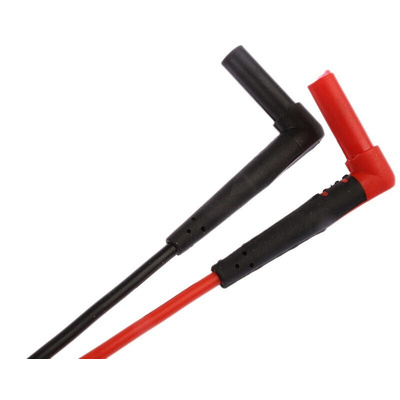

Universal input plugs compatible with all instruments that accept standard mm shrouded banana plugs
Ratings: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., Pollution Degree 2

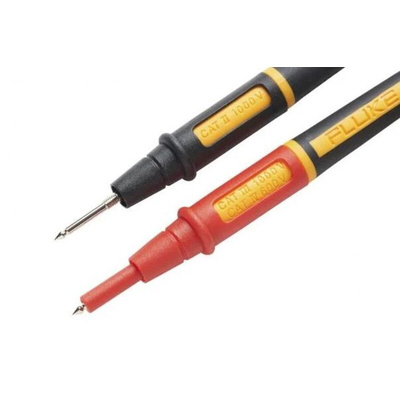

Probes always show correct category rating for tip being used
Environmental ratings -20°C to +55°C
Conforms to safety standard EN61010-031: 2008

What are test leads?

These leads are connecting cables which are used specifically for Multimeters, attaching a test probe to the end will allow the user to measure the required voltage, current or electrical resistance. As it assists operation with a multimeter, at least two of these types of electrical values are measured.

What are test probes?

Connecting to Fluke multimeters, a set of test probes will measure the device or target for an accurate reading, such as voltage or current. Due to the flexibility and quality produced by Fluke, each probe provides much-needed precision.

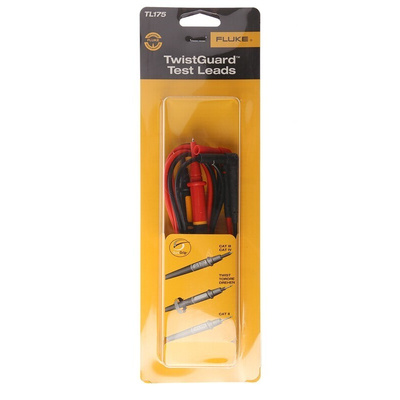

Supplied with

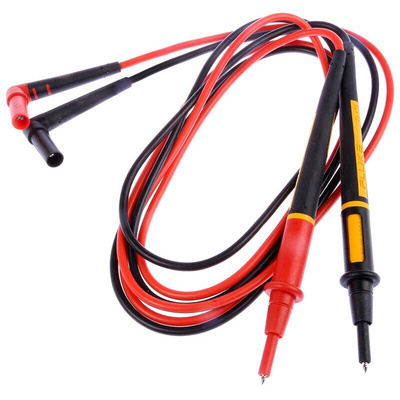

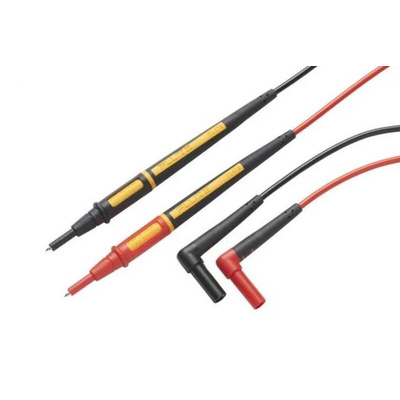

One pair (red, black) Fluke TL175 TwistGuard™ Test Leads
Exposed probe tip length from 19mm to 4mm

FLUKE Multimeter Leads, Test Lead Kit Type, 10A Current Rating - TL175

Get a clear read on electrical signals with this test lead kit from FLUKE. Plug one end into your multimeter and use the probe on the other to measure circuit metrics including voltage, current and resistance. The extendable tips are adjustable to between 4 and 19mm, delivering pinpoint accuracy in different testing setups. Sturdy strain relief at both ends supports a reliable connection that you can rest assured will go the distance.

Features & Benefits

• Compatible with instruments that accept standard 4mm shrouded banana plugs, so it's a versatile piece of kit
• CAT IV 600V rating indicates it can withstand voltage surges of up to 8000V, for reliable user safety
• Double silicone insulation is resistant to oil and solvent damage, for a longer service life
• Probes always display the correct category rating for the tip exposure used, giving you added peace of mind

Applications

• Household outlets
• Switch testing
• Manufacturing facilities
• Automotive industry

What temperature range can I use these leads in?

These leads have a wide operating temperature range between -20°C and +55°C, so they're just the thing for testing in harsh conditions.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

TL175 Data Sheet

Instruction Sheet - TL175
