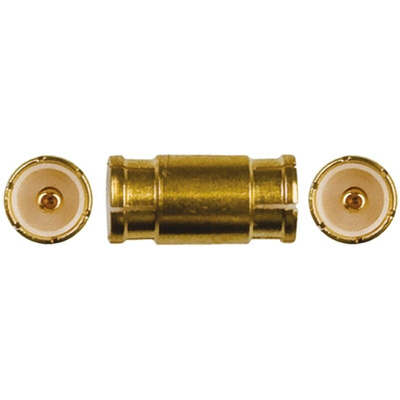

32_MMBX-50-0-4/111_NE, Huber+Suhner Straight 50Ω RF Adapter MMBX Plug to MMBX Plug 6GHz, Переходник

MMBX Connectors Adaptors within Series

Hubner + Suhner MMBX connectors are for use within board to board connections with the ability to cope with mechanical misalignment in radial and axial directions and still maintain excellent electrical performance. Suitable MMBX connector applications include multiple board to board connections and complex stack-ups in radio module applications amongst others.

Direct board- to-board connection
Compensating mechanical misalignment in axial and radial direction
No mechanical stress on piece parts or solder joints
Blind mateable
Excellent RF performance
Good power handling typical 260W at 2.4 GHz at room temperature
Frequency DC 12.4 GHz,

Standards

MIL-STD-202, Method 107 G, Condition B1; MIL-STD-202, Method 106 F; MIL-STD-202, Method 101, Condition B

HUBER+SUHNER MMBX

Modularity with a minimum space requirement is demanded for existing and new generations of cellular technology systems (GSM 900 / 1800 / 1900, PCS, WCDMA, UMTS). In order to reduce the variety of products and to achieve standardised systems (modularity), the MMBX series contains a range of board and cable connectors which require a minimum of space. It offers all the necessary characteristics to obtain a unified design of the various systems.

Adapter MMBX plug to plug (M)) Data Sheet
