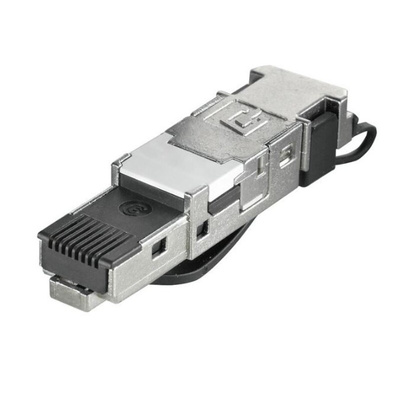

1963600000, Weidmuller Single-Port RJ45 Field Installation Plug, Cat6a, STP

Weidmuller RJ Adapter, 10Gbps Transfer Speed, 360° EMI Shielding - 1963600000

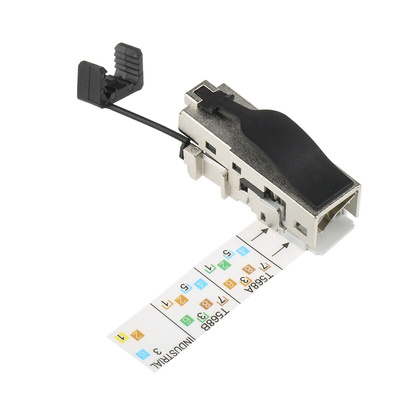

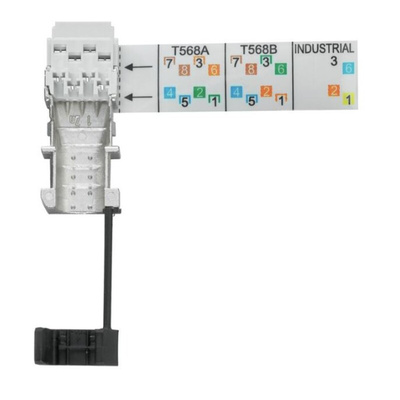

Connect with confidence out in the field using this Weidmuller RJ adapter. It helps extend your Ethernet network by letting you attach an RJ45 plug to the free end of a multicore cable. Guided conductor terminals prevent mishaps, so you'll find installation's a doddle with just a pair of nippers. There's even a tear-off wiring diagram for guidance when linking to different types of wire. Thanks to its 360° shielding, you can trust the unit to hold its own against EMI. Conductive gold-over-nickel-plated contacts mean you can count on strong, high-quality signals.

Features and Benefits

• Lasts for 10 or more mating cycles, so it's reusable
• Cat6a cable supports transfer speeds up to 10Gbps for speedy signals
• Wide operating temperature range between -40°C and +70°C for use in harsh environments
• High dielectric strength of ≥1500V DC means it's effectively insulated to protect you from shock
• STP wires enable PoE applications in addition to data transfers for versatility

Applications

• Data centres
• Telecommunications hubs
• Schools and universities
• Hospitals

What wire sizes fit this RJ adapter?

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

This RJ adapter accepts flexible wires with diameters between 0.48 and 0.76mm and solid wires with diameters between 0.4 and 0.64mm, so it's a versatile choice to suit a whole host of applications.

Datasheet

Manual - 1963600000

Catalogue - Industrial Ethernet
