1018790000, Weidmuller 2-Port RJ45 Coupler, Cat6a, STP

FrontCom Micro® Front Panel Interface Sockets

From Weidmuller, the FrontCom Micro range of Front Panel Interface sockets are the best choice when you need an IP65 connection at the control panel, electrical cabinet or distribution board. Operating at a LAN Category of 6 a, these interface sockets are protected by a PA; UL 94: V-0 rated housing with a protective cap, and are ideal for industrial environments. All models are highly reliable and excellent quality.

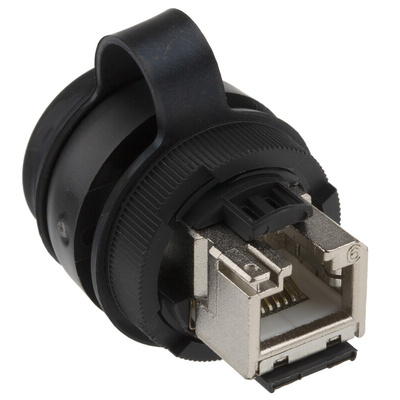

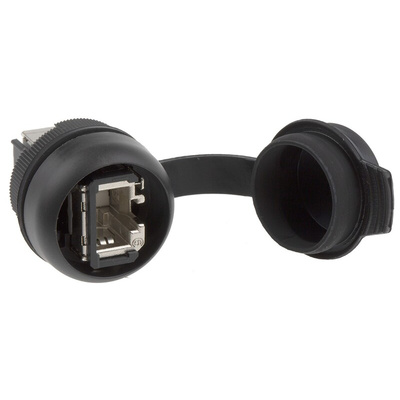

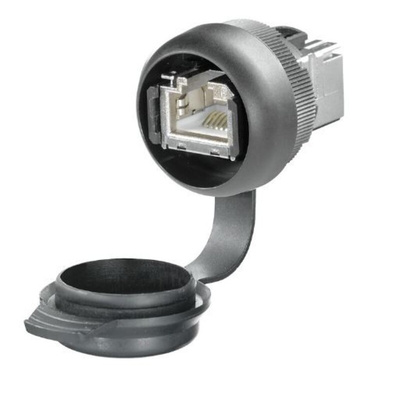

Weidmuller RJ Coupler, Cat6a LAN Category, PA Housing Material - FrontCom Micro Series - 1018790000

Use this RJ coupler from Weidmuller in your cabinet or distribution box to link Cat6a Ethernet cables and extend your network over greater distances. Its two female ports with 8-wire connectors sit back-to-back in their housing, so you get easy in-line connections when joining two male Ethernet plugs. Thanks to the gold-over-nickel plating, the contacts are highly conductive and corrosion-resistant to give you high-quality signal transfers. The unit has an IP65 rating when the cap is closed, so it's dustproof and protected against low-pressure water jets for use in harsh settings.

Features & Benefits

• 360º shielding offers reliable protection against EMI
• Wide operating temperature range of -40°C to +70°C for use in harsh environments
• Housing wall thickness between 1 and 3mm for effective protection against damage

Applications

• WAN networks
• LAN extensions
• Network patching

How robust is this coupler?

This coupler is encased in a robust PA material that's resistant to abrasion, impact and chemicals. It's also flame-retardant, so it won't promote the spread of flames in the event of a fire.
