8808360000, Weidmuller 8-Contact Interface Module, IDC, RJ45 Connector, DIN Rail Mount, 1A, Модуль

Weidmuller DIN Rail Terminal Outlets

From Weidmuller, this selection of Terminal Rail Outlets enables you to connect installation cables, RJ45 cables, FO cables with ST connectors. With an integrated clamp for quick and easy mounting, this terminal rail outlet is suitable for mounting on TS35 terminal rails.

Options include:

7417345 - 8 Pole IDC, RJ45 Connector Interface Module
7417351 - 2 Pole ST Connector Interface Module
7417357 - 2 Pole RJ45 Connector, Female to Female Interface Module
7417360 - 2 Pole USB Connector Interface Module
7417363 - 2 Pole SC Connector Interface Module

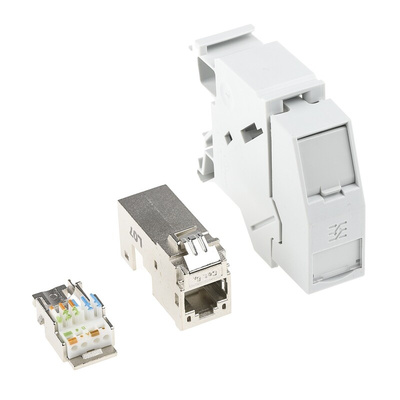

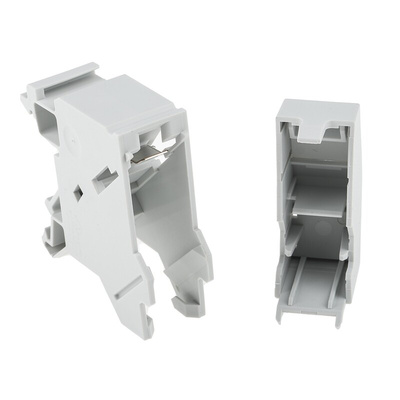

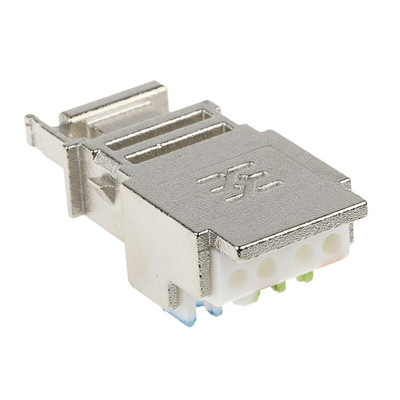

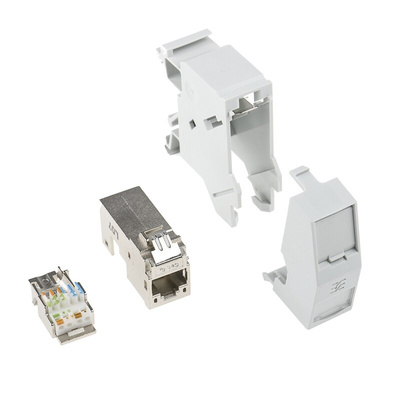

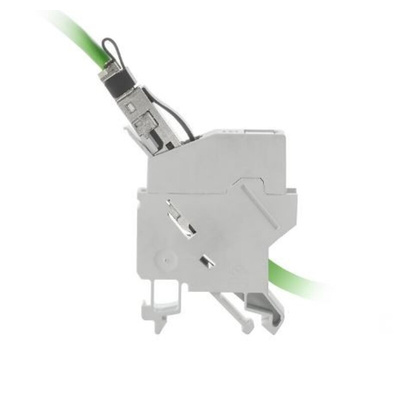

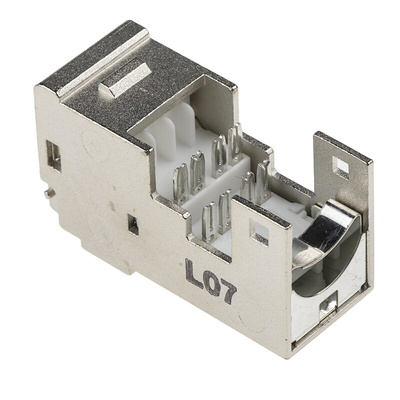

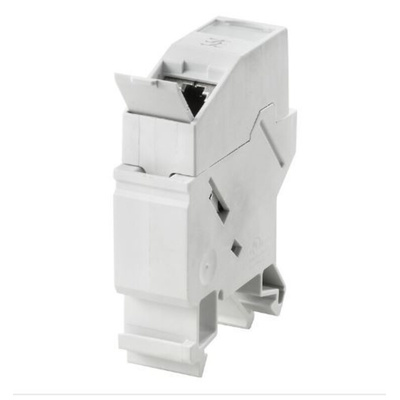

Weidmuller Interface Module, RJ45 to IDC, 26 to 22AWG Wire Size - 8808360000

Use this interface module from Weidmuller to transmit signals between your electronic devices and your control system. It features an RJ45 connector on one end and an IDC connector on the other, letting you quickly set up wires without the need for additional connectors. The module has a long lifespan of 750 plugging cycles, so you can rely on it for multiple uses. Thanks to the wide operating temperature range between -25°C and +70°C, you can safely use this unit in challenging environments.

Features & Benefits

• IP20 rating indicates it's finger-safe and protected against objects larger than 12mm in size
• PA66 housing is resistant to wear and impact
• Current rating of 1A for use in low-power systems

Applications

• Manufacturing industry
• Aviation engineering
• Construction equipment
• Medical technology

What wire sizes can I use with this module?

This module accommodates wire sizes between 26 and 22AWG, making it a versatile choice.

What LAN category does this interface module support?

This interface module supports Cat6 LAN connections for reliable performance in demanding applications.

Standards

Connector standard IEC 60603-7-5
Certificate no. (cULus) E316369
Certificate No. (GERMLLOYD) 33451-06
