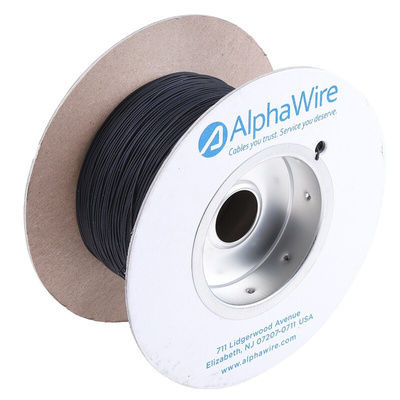

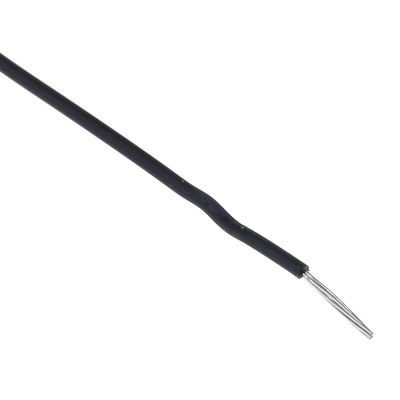

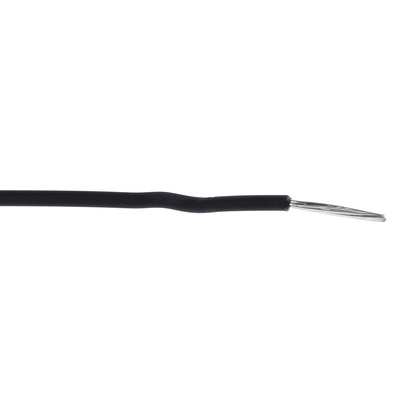

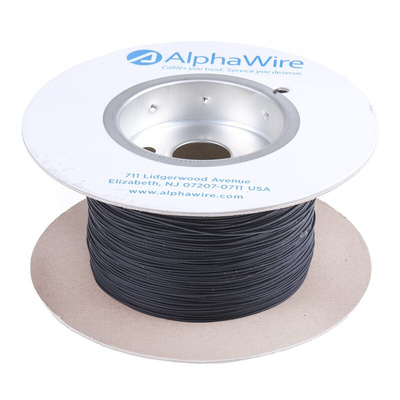

6711 BK001, Alpha Wire EcoWire Series Black 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm, 305m, MPPE Insulation

Belden Alpha Wire Hook Up Wire, EcoWire Series - 6711 BK001

This hook up wire from Alpha Wire is an eco-friendly choice for your control cabinet as it’s fully recyclable. It uses insulation which contains no heavy metal pigments and offers a high resistance to oils and chemicals, ensuring durability for your application. You can use this wire in a temperature range of -40°C to +105°C, so it’s well suited to harsh industrial conditions. As it’s also colour coded you’ll be able to quickly and easily identify it in your control cabinet.
The Ecowire series by Alpha Wire, a Belden brand, is engineered to ensure better dielectric strength and is up to 45% smaller in diameter and up to 40% lighter.

Features and Benefits:

• Unique modified mPPE thermoplastic insulation which contains no heavy metal pigments
• Tinned copper conductors provide excellent conductivity
• Low specific gravity
• Flame retardant to UL VW-1 rating

Applications:

Control panels
Automotive
Meters
Ovens
Internal wiring of computers
Electronic equipment
Business machines and appliances

What is hook up wire?

Hook up wire is a type of wire made up of a single insulated conductor, used in low voltage, low current electrical applications. Typically you’ll find it’s used to connect components within circuits.
