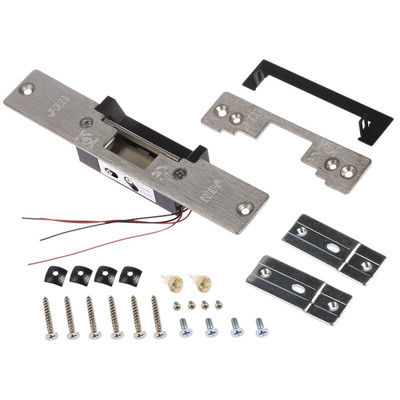

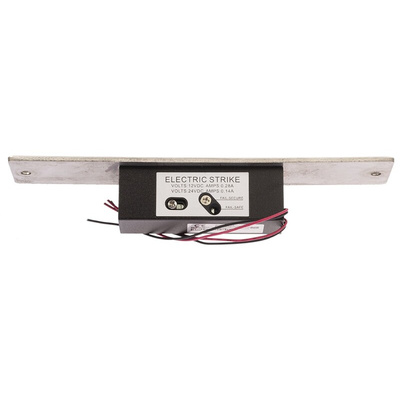

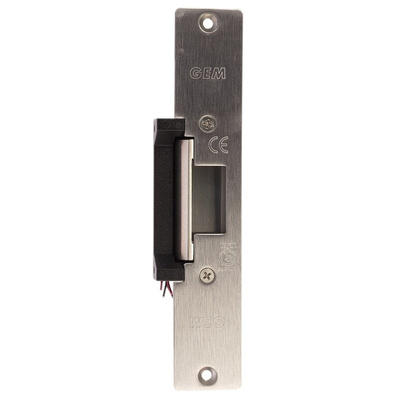

RS PRO Electric Door Release, Fail Safe, Fail Secure, 12V, 33 mm

RS PRO Electric Door Release, Fail Safe, Fail Secure, 12 V, 24 V, 33 mm

To more securely control access to your building, look to this electric door release. It's part of the RS PRO range and can be used in conjunction with mechanical locks and access control systems on door frames to enhance the security of a property.

You can select whether a door will unlock or remain locked in the event of a power failure, as this strike release has both fail-safe and fail-secure settings. There's also an option to delay auto-relocking by 0, 3, 6 or 9 seconds. It's simple to fit this system to any doorframe with the compact 33 mm-deep design. Pull-tested at up to 900 kg, this electric door release is a robust addition to your security system.

As part of the RS PRO range, this door release has been stringently tested for quality and safety. This product is suited for use in residential blocks as well as commercial or industrial workplaces.

Features and Benefits

• Depth of 33 mm
• Height of 202 mm
• Width of 40 mm
• Operating temperature range of -10°C to +45°C
• Voltage rating of 12 V, 24 V
• Draws a current of 0.25 A at 12 V DC
• Fail-safe and fail-secure modes
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
