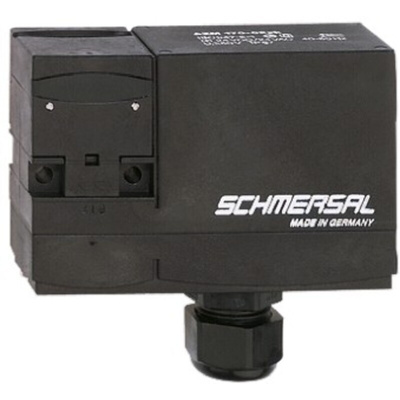

AZM 170-11ZRKA 230 VAC, Schmersal AZM 170 Series Solenoid Interlock Switch, Power to Lock, 230V ac

Schmersal AZM170 Solenoid Interlock Switches

The AZM170 series of solenoid interlock switches offer robust guard door protection within many applications. Both power to lock and unlock types of solenoid interlock are available within a range of AC/DC coil voltages to operate. These interlocks are made to withstand industrial enviroments having a high protection class rating of up to IP67 conforming to IEC/EN 60529.

Both power to lock and power to unlock types
1 x Cable entry M 20 x 1.5
Electromechanical actuation type
Dimensions: 30 x 90 x 84 mm
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing body material
High protection class rating of IP67 to IEC/EN 60529
Operating temperature: -25 → +60 °C

Note

Actuator not supplied.

Standards

EN ISO 13849-1, EN 60947-5-1, BG-GS-ET-19

Approvals

BG, USA/CAN, CCC

Schmersal Solenoid Interlock Switch, 230V AC, Power-to-Lock - AZM 170 Series - AZM 170-11ZRKA 230 VAC

Protect your operators from dangerous machine processes with this solenoid interlock switch from Schmersal. Its electromagnetic locking mechanism prevents your machine guards from accidentally opening during operation to minimise process disruption. The switch's NC safety contacts keep your guards locked in the event of a sudden power failure, preventing injuries from hardware that remains dangerous after deactivation. As it locks when energised, the switch activates alongside your machinery for enhanced efficiency.

Features & Benefits

• IP67 rating means it's dust-tight and protected against submersion in 1m of water for up to 30 minutes
• Strong clamping force of 1000N to ensure guards and gates remain locked during machine operation
• IDC termination method for quick and simple electrical connections
• Compact dimensions of 30 (length) x 90 (width) x 84mm (height) to minimise bulk in your setup

Applications

• Hazardous areas
• Woodworking industry
• Automated assembly lines

Does this solenoid interlock switch come with an actuator?

This interlock switch doesn't come with an actuator, meaning you can install the type of actuator that's best suited to the demands of your application.
