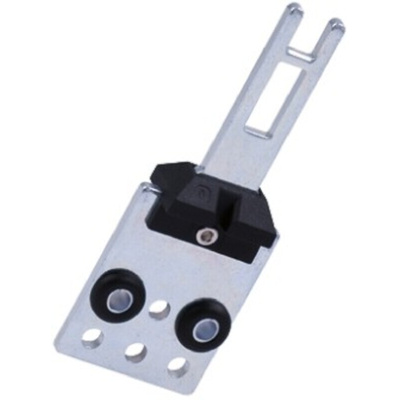

AZ 3350-B1, Schmersal Actuator for Use with AZ3350 Safety Switch

AZ3350, Coded

This robust, metal bodied safety switch is designed for use on machine guards which have to be closed for operational safety
The special tongue actuator is designed to prevent accidental or deliberate operation by simple means such as screwdrivers, bent wires, etc
Actuating head can be fitted in 4 positions (90° steps)
Can be mounted on a flat surface
Positive break is achieved with guard movement
Includes a latching handle
Has a long operation life time
High level of contact reliability with low voltages and currents
1 Cable entry M 20 x 1.5
40.5 mm x 114 mm x 38 mm

Note

Actuator sold separately.

Standards

EN ISO 13849-1

Approvals

BG, USA/CAN, CCC

Schmersal Straight Actuator, For Use With AZ 3350 Safety Switch, 400mm Actuating Radius - AZ 3350-B1

Complete your safety switch setup with this actuator from Schmersal. It's designed for use with the AZ 3350 safety switch (RS Stock No. 724-3695) for ease of assembly. The actuator has a large minimum actuating radius of 400mm, giving you precise control over adjustable safety devices like sliding door mechanisms. Thanks to its latching design, the actuator ensures your safety switch remains locked in the desired position for added security.

Features & Benefits

• Supports four different actuation planes for flexible installation
• IP67 rating when used with a Schmersal safety switch, meaning it's dust-tight and protected against submersion in 1m of water for up to 30 minutes
• Durable metal construction is resistant to impact and wear for durability

Applications

• Machine gates and guards
• Pneumatic and hydraulic equipment
• Metalworking industry

What maintenance should I perform on this safety switch actuator?

Before first use, ensure the actuator rotates fully and freely in the safety switch. If using the switch in extreme conditions, you should regularly check to ensure that the actuator is still correctly installed.
