NDR Series Emergency Stop Push Buttons
This range of Head Emergency Buttons are used in control cabinets, control panels, in elevator construction, on conveyor or transport plants.
After the manual actuation, the components initiate or switch off work processes and functional processes.
The range of NDR Series Emergency Stop Push Buttons are available in the form of pushbuttons, joystick switches or key-operated switches.
They are available in a single, dual and tri state contact blocks.
There is an option to have N/O (normally open) and N/C (normally closed) contact versions to satisfy every requirement.
Approvals
BG, USA/CAN
Standards
IEC/EN 60947-1, EN 60947-5-1
Standards
IEC/EN 60947-1, EN 60947-5-1
Approvals
BG, USA/CAN

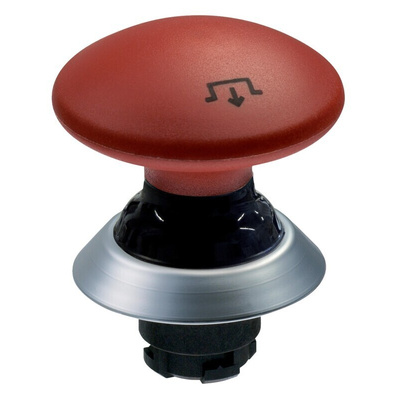

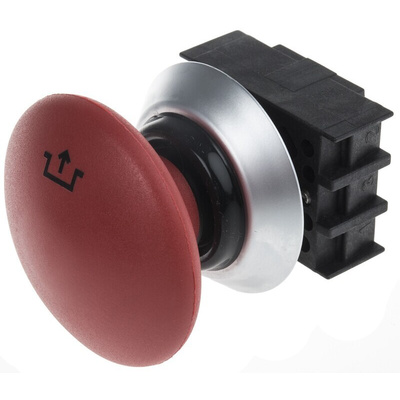

This NDRZ50GR/RT belongs to emergency stop latching pushbuttons with a mechanical life up to 100.000 operations.
This is a non-illuminated item with the following colour characteristics:
•Colour of the operating element is red
•Colour of the bellows is black
•Colour of the front ring is silver
The ambient temperature for this unique product ranging from -25°C to +80°C.
Standards of protection falls under IP67 and IP69K where the following can be expected:
•IP67 (rated as "dust tight" and protected against immersion)
•IP69K (rated as ’’complete assurance ’’provides the highest protection rating on the scale)
The resistance to shock for NDRZ50GR/RT oscillate at 30 g / 18ms.
Frequently asked questions & answers
What is the different between a push button switch for an emergency stop and a general-purpose push button switch?
A general-purpose push button switch is used for controls, e.g. to start machine operation or simply to switch modes. An emergency stop push button switch however, is mainly used as a safety measure to stop hazardous events.
Datasheet
Machine Guarding and Safety Range Overview
