88974024, Crouzet Millenium 3 Series Logic Module, 24 V ac Supply, Relay Output, 8-Input, Digital Input, Логический модуль

Crouzet Logic Module

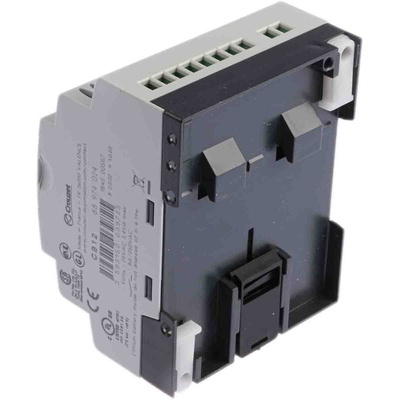

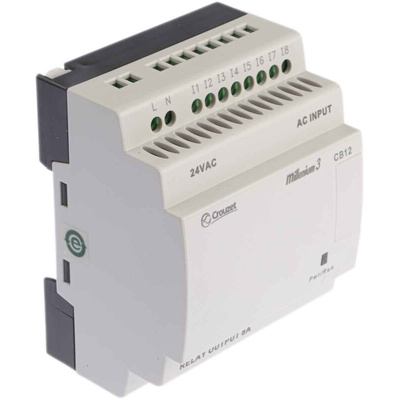

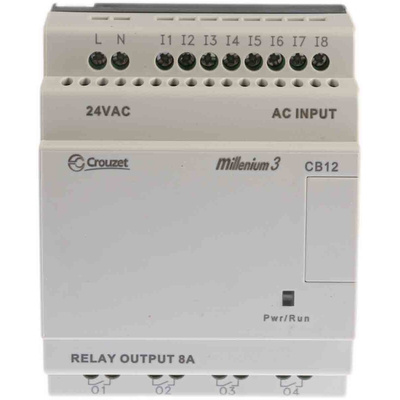

The Crouzet Millenium 3 series logic module is the latest generation of the Millenium compact version CB12 series with 8 digital inputs and 4 relay outputs of 8A contact current rating. This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a supply voltage rating of 24VAC.
Crouzet Millenium 3:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming.

Features and Benefits

Operating temperature ranges between -20°C and +55°C
Efficient and economical version, without display or keys setting
Allow the use of the entire library of specific functions blocs of the software workshop
Battery backup
Choice of ladder or function block programming
Serial, USB port communication
Protects program
Selective configuration
Memory back-up using EEPROM
Compact version
Modbus communication 2 x 8 words with read/write access
Network creation option communication between 7 millennium 3 units
Without display

Applications

Automatic washing equipment
Agricultural machinery
Managing air conditioning
Heating systems

Certifications

CE
CSA
GL
UL approved
IP40 rated

Millenium 3 Smart CBxx Data Sheet
