88974054, Crouzet Millenium 3 Series Logic Module, 24 V ac Supply, Relay Output, 12-Input, Digital Input, Логический модуль

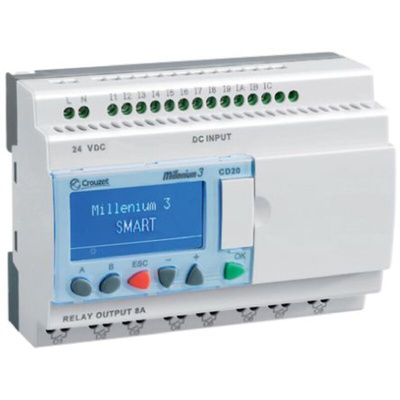

Crouzet Logic Module

The Crouzet Millenium 3 series logic module is the latest generation of the Millenium compact version CD20 series with 12 digital inputs and 8 relay outputs of 8A contact current rating. This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a voltage rating of 24VAC.
Crouzet Millenium 3:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming.

Features and Benefits

Operating temperature ranges between -20°C and +55°C
Battery backup
Highly visible blue LCD with 4 lines of 18 characters
and configurable backlighting
Allow the use of the entire library of specific functions
blocs of the software workshop
Analogue inputs 0-10 VDC, Potentiometer, NTC, LDR
(0-20 mA/Pt100 with converters)
Choice of ladder or function block programming
Serial, USB port communication
Protects program
Selective configuration
Memory back-up using EEPROM
ESD protected
Expandable controller
LCD display
Memory size 368bits

Applications

Automatic washing equipment
Agricultural machinery
Managing air conditioning
Heating systems

Certifications

CE
CSA certified
EC approved
ISO 9001
ISO 14001
OHSAS 18001
UL Listed
