2982702, Phoenix Contact PLC-OSC- 24DC/ 24DC/ 10/R Series Solid State Interface Relay, 10 A Load, DIN Rail Mount

Phoenix Contact PLC-OSC Series

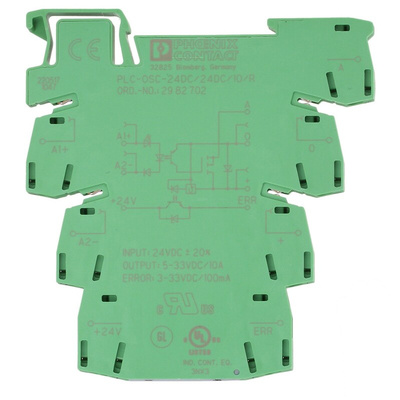

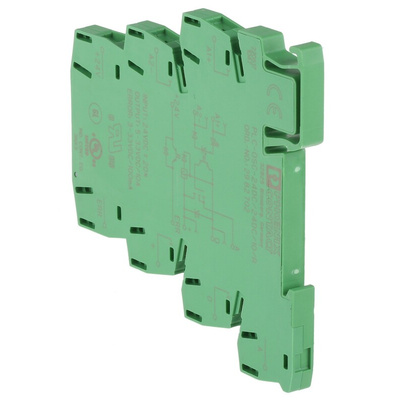

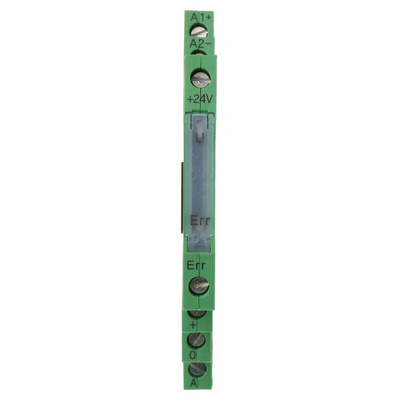

Phoenix Contact Interface Relay Module, Screw Terminal, DIN Rail - PLC-OSC-24DC/24DC/10/R - 2982702

This interface relay module from Phoenix Contact is a convenient way to operate a relay. You can use it to control large radio-electronic, electro-physical and X-ray installations and protect them against emergency conditions. Its compact build will save space on your DIN rail.
The module can be used at temperatures down to -25˚C and up to +60˚C, making it suitable for a range of industrial environments. The screw terminals let you make quick and secure connections.
For safety, the input voltage is 24 V and the relay module is resistant to vibrations and shocks, offering wear-free switching with no contact bounce. It's also protected against short circuits. PLC (programmable logic controller) relays such as this are used to control automated processes in industrial applications including amusement rides, lighting rigs and assembly lines.

Features and Benefits

• Maximum load current of 10 A
• Maximum load voltage of 300 V DC
• Minimum load voltage of 5 V
• Operating temperature range of -20°C to +60°C
• Dimensions of 80 (height) x 6.2 (width) x 86 mm (depth)
• DIN rail mounting type
• Screw terminal type
• Option of bridging adjacent modules
