2981444, Phoenix Contact DIN Rail Force Guided Relay, 24V dc Coil Voltage, 4NO/2NC, Реле

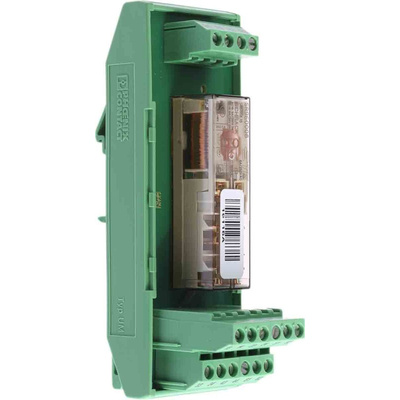

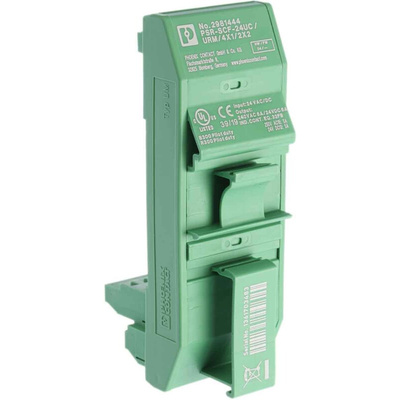

Phoenix Contact Force Guided Relay, Screw Connection Type, 40 (W) x 111 (H) x 56mm (D) - PSR-SCF- 24UC/URM/4X1/2X2 - 2981444

Need to connect safety-critical applications like emergency stop systems? This force guided relay from Phoenix Contact does the job. It's designed with its contacts mechanically linked together, so that they always work as a team. This means that they can't be in conflicting states due to factors like sticking or welding, making this unit a reliable workmate that can be trusted to safely shut equipment down when there's a fault.
The relay has a maximum switching voltage of 250V AC/DC, so it's suitable for handling medium-duty loads. A typical response time of 10ms ensures there's no hanging around. Thanks to silver alloy contacts that are resistant to corrosion, you get a long service life, even in damp settings.

Features & Benefits

• Compact dimensions of 40 (W) x 111 (H) x 56mm (D) to maximise DIN rail space
• Operating temperature range between -20°C and +55°C for reliable performance in challenging conditions
• Mechanical service life of 10 million cycles, so you can be sure it'll go the distance
• Screw connection secures wires in place during operation
• Can be mounted either vertically or horizontally for convenience

PSR-SCF- 24UC/URM/4X1/2X2 Data Sheet

Instruction Sheet - 2981444

Line Drawing - 2981444
