SM50DFC/B2E0020E/S, ABB SM50DCF, 6 Input Channels, 4 Output Channels, Videographic Chart Recorder Measures Current, Resistance,, Диаграммный самописец

ABB Chart Recorder

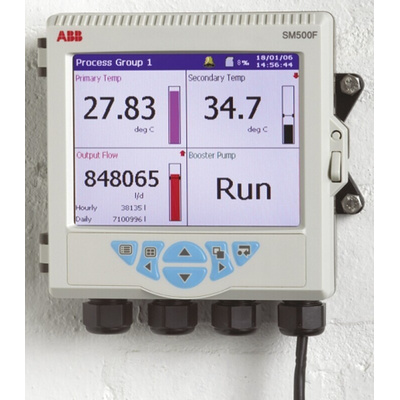

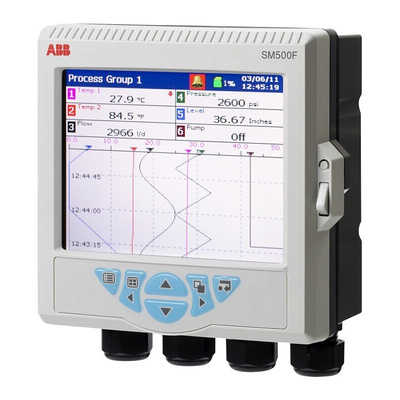

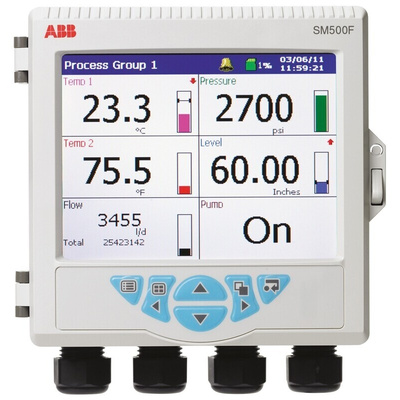

The ABB SM500F is a field mount, 6-channel videographic recorder used to measure the current, voltage, resistance and temperature. This is a paperless recorder with an operating voltage that ranges between 85Vac and 265Vac. Its unique enclosure design enables wall, pipe or panel mounting of the unit. Process data is displayed clearly to the local operator through a variety of display formats, including charts, bar graphs and digital indicator displays. Ethernet communication provides convenient remote monitoring of the process and access to logged data. It is used to monitor and measure temperature and humidity in cold storages and warehouses.

Features and Benefits

12 software recording channels
Easy tracking of batch processes available
Extensive physical and electronic security features ensure integrity of recorder's configuration and archived data
MODBUS RS485 connectivity
Quick and easy setup with online help and windows style menus
Secure data recording with 64MB internal flash memory and archiving to SD memory cards

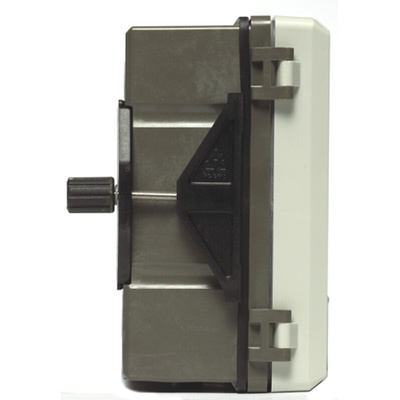

Ultra slim design, 90mm (3.5in) deep
Unique universal mounting capability
Secure data recording
64MB internal Flash memory
Archiving to SD memory card
21 CFR Part 11 compliant data security
Colour TFT or monochrome options
Remote access and data retrieval

Certifications

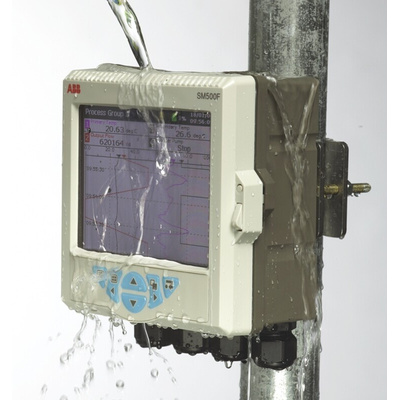

IP66 rated
NEMA4X
