ABB SM503FC/B2E0020E/STD, 3 Channel, Graphic Recorder Measures Current, Resistance, Temperature, Voltage, Диаграммный самописец

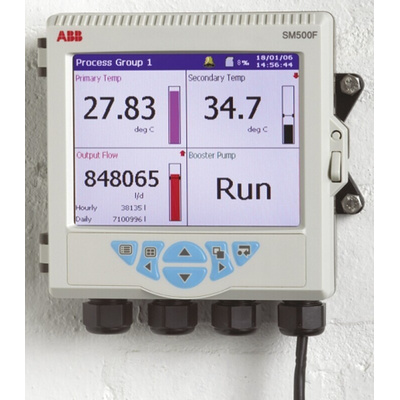

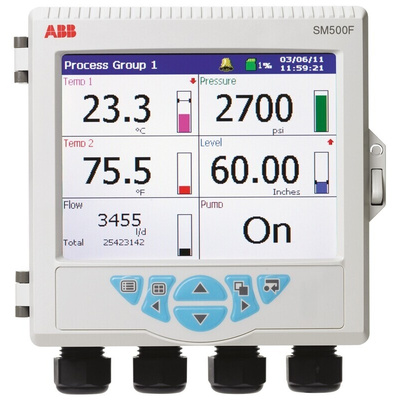

SM500F Field Mountable Videographic Recorder

The SM500F is a field-mountable paperless recorder. Its unique enclosure design enables wall, pipe or panel mounting of the unit. Process data is displayed clearly to the local operator through various display formats, including chart, bar graph and digital indicator displays. Also, process data is logged securely to the removable SD memory card. Ethernet communications provide convenient remote monitoring of the process and access to logged data (742-6828 and 742-6822) only.

• Unique universal mounting capability
- Wall, pipe or panel-mount

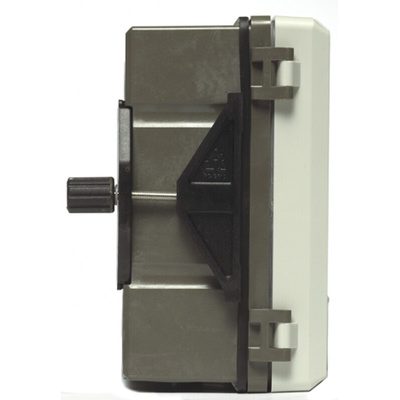

- Ultra-slim design, 90 mm (3.5 in) deep
• Secure data recording
- 64 MB internal Flash memory
- Archiving to SD memory card
• 21 CFR Part 11 compliant data security
- Extensive physical and electronic security features
• 12 software recording channels
- 21 CFR part 11 compliant
• Remote access and data retrieval
- Ethernet connectivity (742-6828 and 742-6822) only

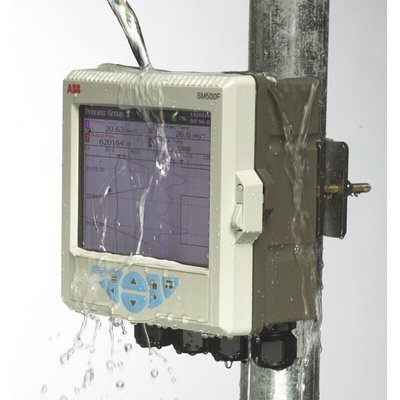

• Install into the harshest of process environments
- Protection to NEMA4X and IP66 standards
• Choice of displays
- Colour TFT or monochrome options
• Quick and easy setup
- Online help and Windows™-style menus

Standards

21 CFR Part 11 Compliant

ABB Chart Recorder

The ABB SM503F is a field mount, 3-channel videographic recorder used to measure the current, millivolt, voltage, resistance and temperature. This is a paperless recorder with an operating voltage that ranges between 85Vac and 265Vac. Its unique enclosure design enables wall, pipe or panel mounting of the unit. Process data is displayed clearly to the local operator through a variety of display formats, including charts, bar graphs and digital indicator displays. Additionally, process data is logged securely to the removable memory card. Ethernet communication provides convenient remote monitoring of the process and access to logged data. It is used to monitor and measure current, millivolt, resistance, temperature and voltage.

Features and Benefits

12 software recording channels
Easy tracking of batch processes available
Extensive physical and electronic security features ensure integrity of recorder's configuration and archived data
MODBUS RS485 connectivity
Quick and easy setup with online help and windows style menus
Secure data recording with 64MB internal flash memory and archiving to SD memory cards
Ultra slim design, 90mm (3.5in) deep
Unique universal mounting capability
Secure data recording
64MB internal Flash memory
Archiving to SD memory card
21 CFR Part 11 compliant data security
Colour TFT or monochrome options
Remote access and data retrieval

Certifications

IP66 rated
NEMA4X
