2967015, Phoenix Contact Solid State Interface Relay

PLC Interface Relays

A series of PLC Interface relays from Phoenix contact. A durable build ensures perfect connection with your application. All models are highly reliable and excellent quality.

Features & Benefits

Different width dimensions: 6.2 mm, 14 mm
Assembly instructions: in rows with zero spacing
Screw connection
Wide range of accessories also available

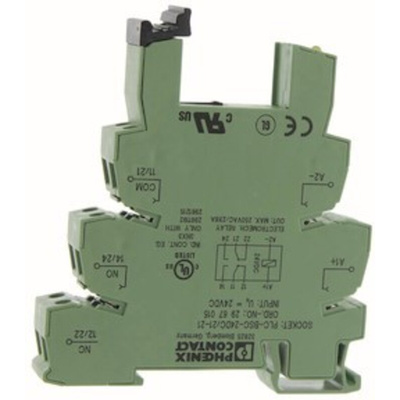

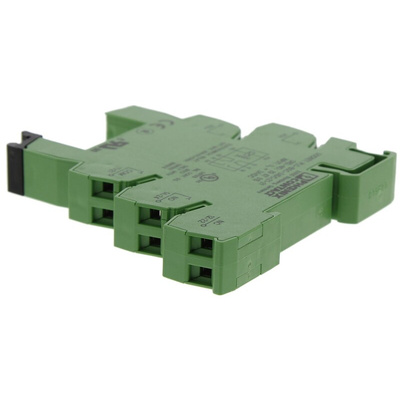

Phoenix Contact PLC Terminal Block, 14mm - PLC-BSC- 24DC/21-21 - 2967015

Connect your wiring and components simply and safely with this PLC (programmable logic controller) terminal block from Phoenix Contact. It's designed with slots that house solid-state relays, so there are no moving parts and less chance of breaking. You can mount it on a standard DIN rail for easy installation and compatibility with common fixtures.
The terminal features screw-in connections, allowing you to wire components in securely with minimal tooling. You can remove them just as quickly, so it's easy to adapt, update and rearrange your circuits as needed. This durable component has a wide operating temperature range of -40°C to +60°C, so it's suitable for use in extreme conditions.

• Cable cross-sectional area of 2.5mm²
• Green in colour
• Voltage rating of 24V DC
• Wire size of 26 to 14AWG (American Wire Gauge)
• LED (light-emitting diode) status display
• UL (Underwriter Laboratories) 94-V0 rating indicates materials will burn for no more than 15 seconds when exposed to a naked flame
• Fully compliant with the Restriction of Hazardous Substances (RoHS), meaning it contains minimal or no potentially harmful materials
