2981059, Phoenix Contact Dual-Channel Light Beam/Curtain, Safety Switch/Interlock Safety Relay, 24V ac/dc, 3 Safety Contacts, Реле безопасности

PSR Safety Relay for Light Grids

The PSR safety relays from Phoenix Contact have a supply voltage of 24 Vac/dc and are for light grid monitoring, emergency stop (E-Stop) and safety door monitoring. Relevant safety equipment can be connected easily without the need for additional settings on the relay.

Features and Benefits

• Single and two-channel control
• Manually monitored and automatic activation
• 3 enabling current paths and 1 signalling current path
• 2 Channels
• LED display

Standards

Up to Cat. 4/PL e according to ISO 13849-1, SILCL 3 according to IEC 62061, SIL 3 according to IEC 61508.

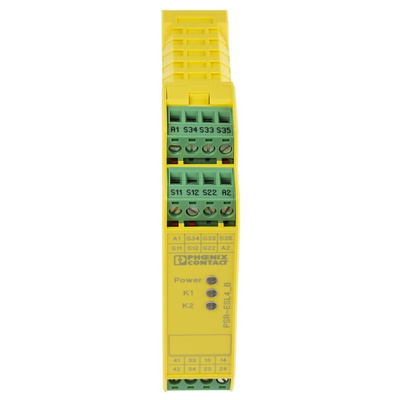

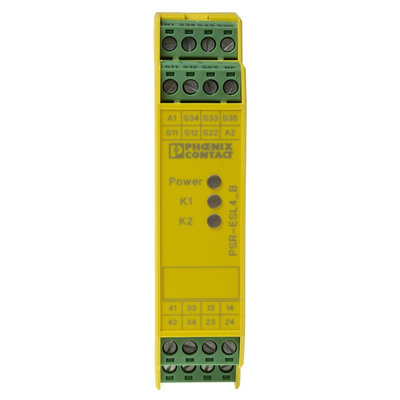

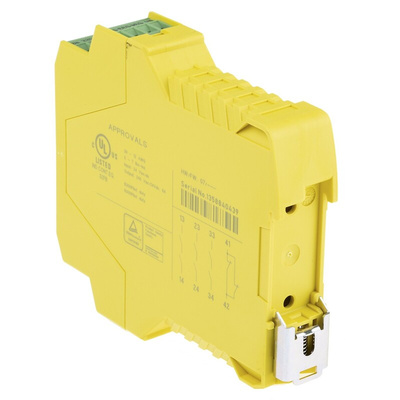

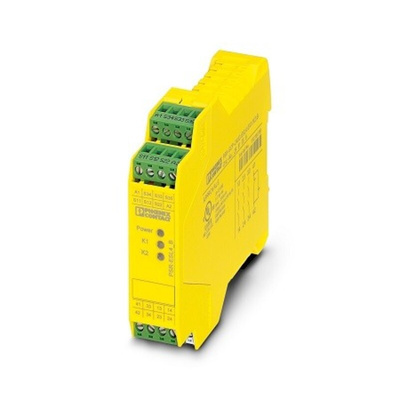

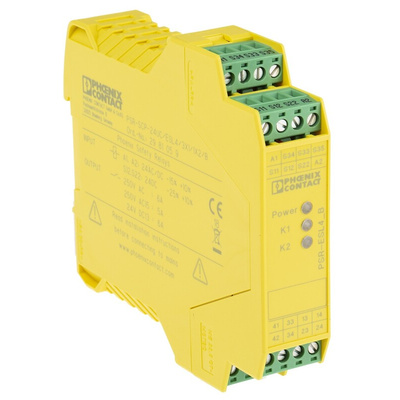

Phoenix Contact Safety Relay, 3 Contacts, 24V DC Voltage - PSR-SCP- 24UC/ESL4/3X1/1X2/B - 2981059

Protect your industrial system from hazards using this safety relay from Phoenix Contact. It features three force-guided safety contacts that monitor changes in the electrical circuits and cut off power if one of them detects a malfunction. You can use with emergency stops, light grids and safety door monitoring, making it a versatile choice. An integrated fuse PTC resistor and suppressor diode protect the relay from electrical short circuits and surges.
For added versatility, this relay is compatible with both single-channel and two-channel devices. An LED display shows its operating status for quick configuration and as it works automatically, you don't need to spend time on manual configuration. A mechanical service life of 10,000,000 cycles means you can rely on this component for long-term use. Combined IP20 (ingress protection) and IP54 ratings indicate it's protected against objects over 12mm, limited dust entry and water splashes.

• DIN rail mounting for easy installation
• Lightweight at 193.9g so it won't add bulk to equipment
• Quick recovery time of 1 second for rapid operation
• Broad operating temperature range between -20°C and +55°C to withstand harsh environments
• Resistant to shocks and vibration for durability
