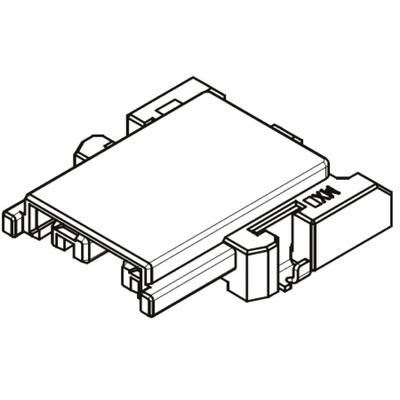

503469-0200, Molex Flexi-Mate Series Right Angle Surface Mount PCB Header, 2 Contact(s), 3.7mm Pitch, 1 Row(s), Shrouded

Flexi-Mate™ Components

The Flexi-Mate family of the 3.00mm (.118”) mated height connectors have a dual-contact terminal design for secure electrical contact with a pitch of 3.7 mm (0.146 in.). Space-saving positive side locks are included for wire-to-board connections with mating guide features to help facilitate mating and protect the shrouded terminals during mating and unmating operations. The terminating connector is used as a shorting device to complete an open-loop signal.

3.7mm Molex Flexi-Mate™ Range

These Molex Flexi-Mate™ connectors are designed for LED TVs and standard room-lighting applications requiring the placement of LEDs on interconnecting panels across the full width of the display or lighting fixture. The Flexi-Mate design meets the need for flexibility and space savings and includes coplanar board-to-board connectors used to snap together small panels containing LED lights. The system includes a wire-to-board option to connect the LED boards to the main power board.

503469-0200 Customer Drawing

Flexi-Mate Catalogue

Datasheet
