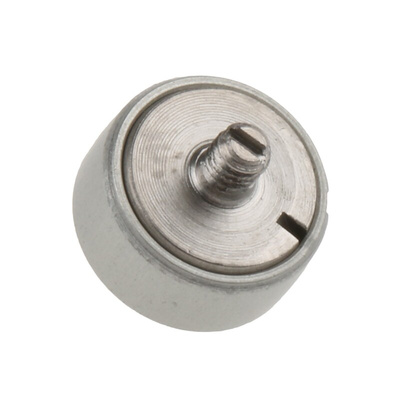

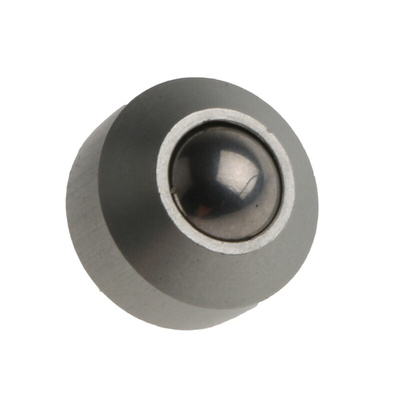

ALWAYSE Mini Ball Transfer Unit
The ALWAYSE stud mount mini ball transfer unit is a highly efficient device with a maximum load capacity is 5kg. This unit is used to move or transfer loads in all direction. Engineered with precision and features coarse metric threads.
Note:
Please refer to the manufacturer’s datasheet for each mini ball transfer unit’s technical specification.
Features and Benefits
Ball diameter is 4.8mm
Case material is aluminium
Load ball and small ball material is stainless steel
Material of housing outer cover is aluminium and screw thread is stainless steel
Stud diameter is M2
Stud length is 2.5mm
Applications
Clean room equipment's
Lightweight mini turntables
Measuring equipment
Small linear motion guides
Other miniature mechanisms
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
