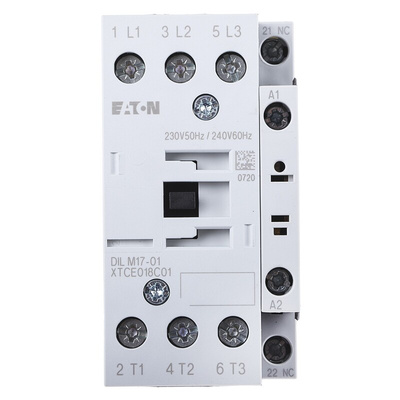

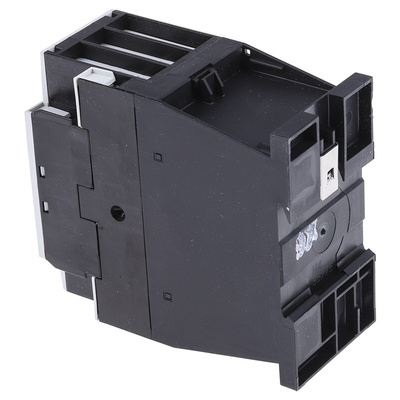

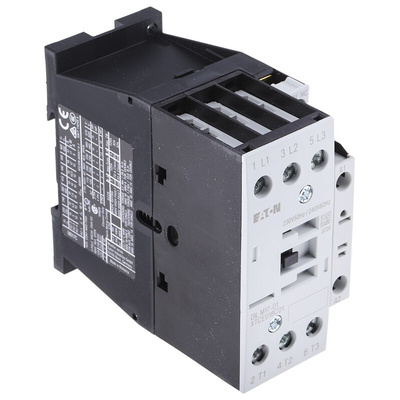

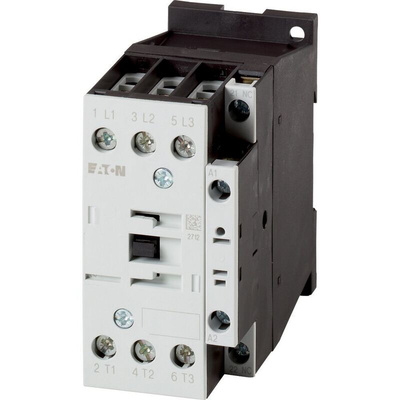

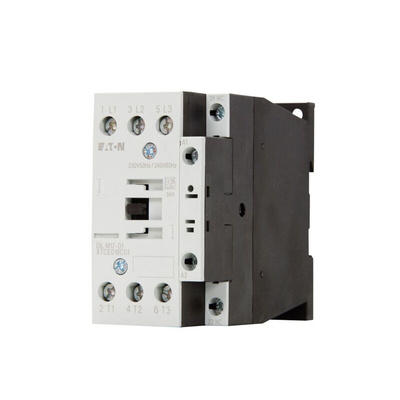

277036 DILM17-01(230V50HZ,240V60HZ), Eaton Contactor, 230 V ac Coil, 3-Pole, 17 A, 7.5 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, Single Auxiliary Contact, M5 Thread - DILM Series - 277036 DILM17-01(230V50HZ,240V60HZ)

Energise your industrial system with this contactor from Eaton. It's ideal for motor-starting tasks in applications such as the railway industry, factory automation and mechanical engineering. The unit handles heavy usage with ease as it performs up to 5,000 operations per hour without running out of steam. To simplify the setup process, its terminals accept either stranded or solid wires in a commonly used size range between 18 and 14 AWG. Screw terminals let you make speedy connections without the need for specialist equipment.

Features & Benefits

• Mean time between failures of up to 10 million operations for long-term service
• 7.5kW power rating to energise demanding applications
• 3 poles offer versatile setup options to boost productivity
• 8kV AC impulse protection safeguards your system from hazardous electrical overloads

What size is this contactor?

It has compact dimensions of 45 (W) x 85 (L) x 138mm (D), so it's easy to handle and doesn't take up much space in your setup.

Does this product function in challenging conditions?

Yes. You can rely on the contactor in a temperature range between -25°C and +60°C, so it's suitable for challenging conditions.

Note

Eaton formerly known as Moeller

Eaton DILM17-01 3 Pole Contactor Datasheet

Instruction Sheet - DILM(C)17

Catalogue - Motor Starter, Protector
