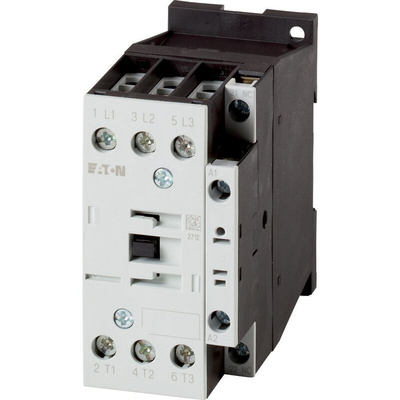

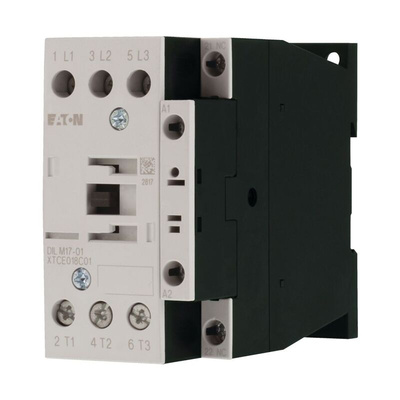

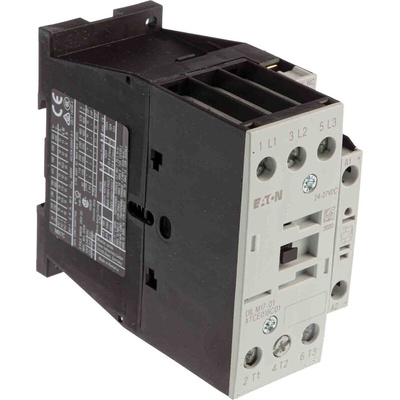

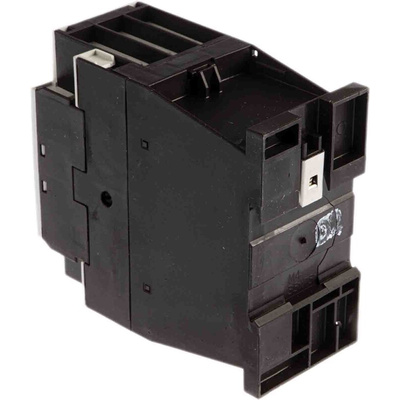

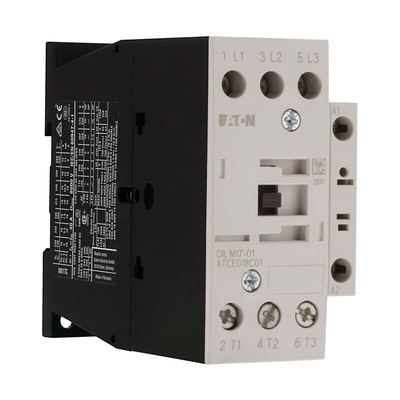

277050 DILM17-01(RDC24), Eaton Contactor, 24 V dc Coil, 3-Pole, 17 A, 7.5 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 3.2Nm Tightening Torque, 8kV Rated Impulse Withstand Voltage - DILM Series - 277050 DILM17-01(RDC24)

Looking for a compact control solution to safely switch your industrial loads? Check out this contactor from Eaton. It's designed especially for connecting to high-current load devices like motors and heating systems. The unit has spring-loaded contacts that make or break electrical connections to turn machines on or off. As it resists up to 8kV of surge voltage without being damaged, it reduces the risk of fire outbreaks and improves safety. Devices of this type are common features on assembly lines.

Features & Benefits

• Built-in suppressor circuit helps keep voltage levels down, prolonging the lifetime of the contacts
• Clearly labelled screw terminals for easy identification and accurate connection
• Dimensions of 85 (L) x 45 (W) x 138mm (H) make it well-suited to setups with limited space
• Mechanical lifespan of 10,000,000 operating cycles on both AC and DC networks for long-term performance
• Finger-proof and back-of-hand-proof to prevent direct contact with live parts

What's the operating temperature range of this contactor?

This unit gets on with the job in a temperature range of -25°C and +60°C, so it's the right choice for challenging settings.

Note

Eaton formerly known as Moeller

DILM17-01(RDC24) Datasheet

Catalogue - Motors Starters, Contactors
