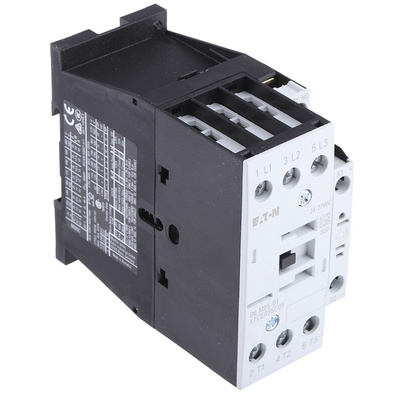

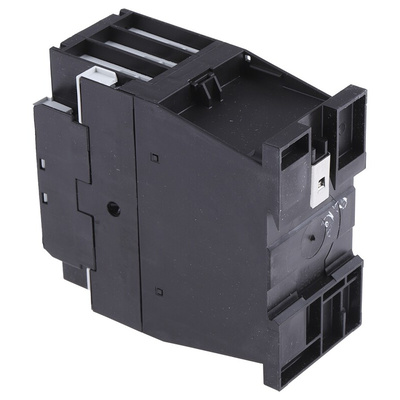

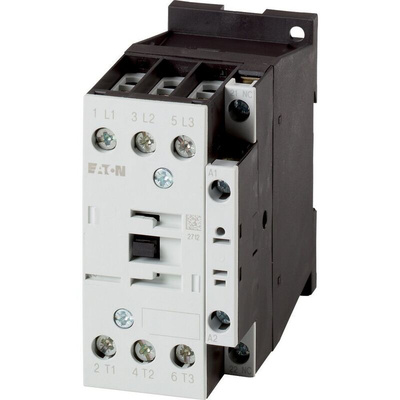

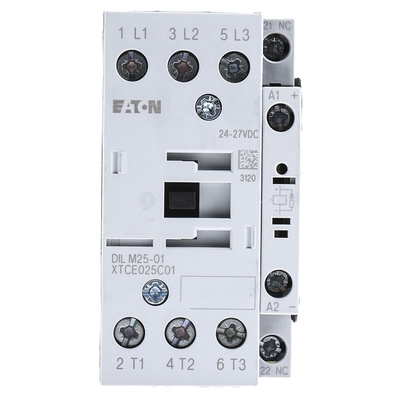

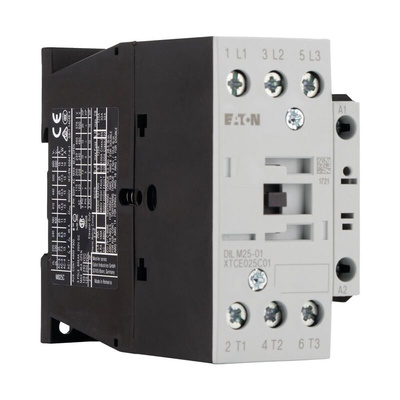

277178 DILM25-01(RDC24), Eaton Contactor, 24 V dc Coil, 3-Pole, 25 A, 11 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 690V AC Rated Insulation Voltage, 250A Rated Breaking Capacity at 380/400V - DILM Series - 277178 DILM25-01(RDC24)

Make or break the power feed to your circuit with this contactor from Eaton. It's a reliable option, thanks to an electromagnetic coil that opens or closes the internal contacts when it's energised. A current rating of 25A and power rating of 11kW means you can use it to handle high-power loads in your device. When you operate the unit from the front, your fingers and the back of your hand are safely protected from the risk of electric shocks. This versatile device can be used to switch everything from lighting fixtures to electric motors on and off.

Features & Benefits

• Service life of 10,000,000 cycles for durable operation
• Mechanical shock resistance of 10g at 10ms to withstand challenging conditions
• Built-in auxiliary contact to monitor operating status
• Three-pole design for easy integration with three-phase systems

How does this unit's auxiliary contact work?

The auxiliary contact mirrors the state of the main contacts and switches position when it does, signalling the control unit.

How often can I use this contactor?

An operating frequency of 5000 cycles per hour means it can keep pace with demanding applications that need to switch constantly.

Note

Eaton formerly known as Moeller

DILM25-01(RDC24) Datasheet

Installation Sheet - 277178 DILM25-01(RDC24)

Catalogue - Motor Starters, Contractors
