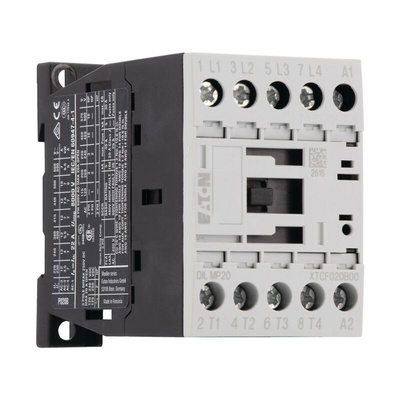

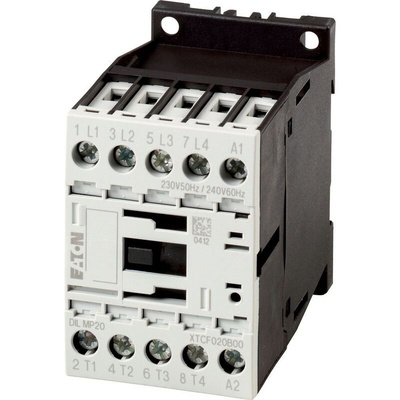

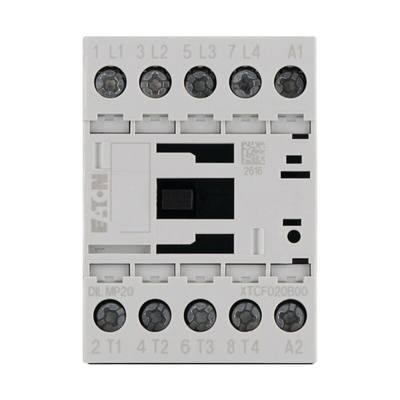

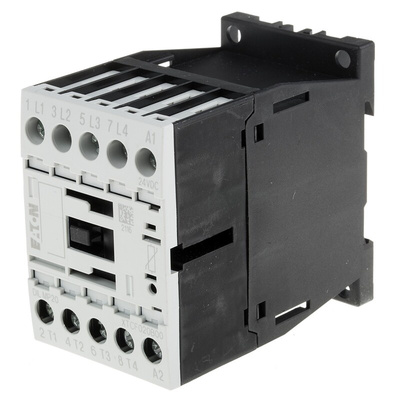

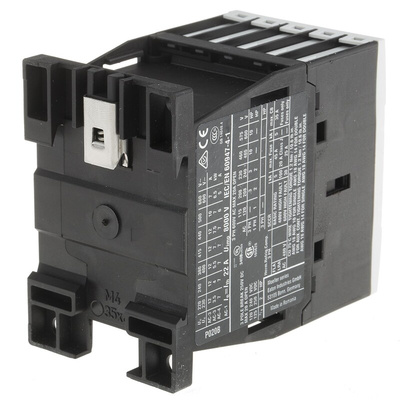

276985 DILMP20(24VDC), Eaton Contactor, 24 V dc Coil, 4-Pole, 20 A, 5.5 kW, 4NO, 400 V ac, Контактор

Eaton Contactor, M3.5 Screw Terminal Connection, 2.5mΩ Impedance Per Pole - DILM Series - 276985 DILMP20(24VDC)

Controlling powerful circuitry is a breeze with this 4-pole contactor from Eaton. By supplying it with 24V DC, it will open or close a connected circuit with a maximum voltage of 400V AC. As its lifespan is 10 million operations, rest assured this unit is very reliable. For electrical safety, it's designed to withstand impulse voltages of up to 8000V. Among applications that use contactors like this are electric motors, lights, capacitor banks and conveyors.

Features & Benefits

• 294g weight, so it doesn't put a strain on your mounting surface
• IP20 rating indicates protection against small tools larger than 12mm
• Diminutive size of 75 (L) x 45 (W) x 68mm (H), suitable for installation in tight work areas
• Performs up to 5000 operations per hour, so it's ideal for applications involving frequent usage

What's the terminal capacity of this unit?

For flexibility, this component is designed to accept solid or stranded wires with a size ranging between 18 and 14AWG.

Does this device withstand tough conditions?

Yes. With an operating temperature range between -25°C and +60°C, this contactor holds its own in challenging work conditions.

Note

Eaton formerly known as Moeller
