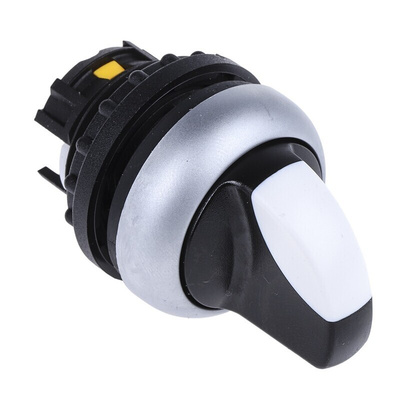

216870 M22-WK3, Eaton 3 Position Selector Switch Head, 22.5mm Cutout, Кнопочный переключатель

Eaton Selector Switch Head - M22 Series

Eaton's M22 range of selector switch heads (sometimes be referred to as rotary selector switch or function selector switch) are designed to simplify the process of buying individual components. Available with either momentary, latching or maintained switching in 2 to 4 position options, these switch actuators make it easy to select the right switch type for your electrical and industrial control needs. Ideally suited for industrial applications the front elements have an enhanced IP66 protection rating making them dust tight and protected against water projection.

Features and Benefits

• Mechanical lifespan of over 1,000,000 operations
• IP66 rating, offering protection against solids, such as dust, and liquids
• Operating temperature range of -25°C to +70°C
• Single selector head complete with fixing adapter for contact clocks and LEDs
• Titanium bezel
• Standard fixing aperture of 22.5 mm
• Available in a choice of colours

Uses and Applications

• Automation and control environments for mounting in control panels
• Dangerous equipment such as motors that require human intervention to operate.
• Public buildings to control lighting in restrooms, corridors etc.

Note

Key operated versions come complete with one key. For extra keys please see stock no. 489-3339.

Approvals

UL, CSA.

Standards

IEC/EN60947.

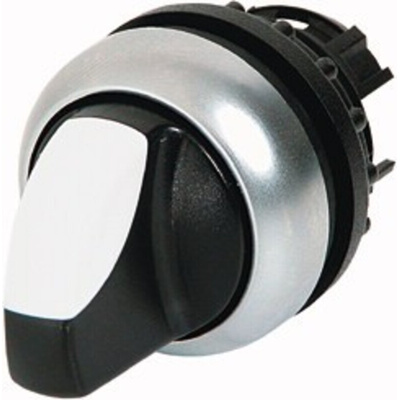

Eaton 3-Position Selector Switch Head, Spring Return, 22mm Cutout - RMQ-Titan Series - M22-WK3

Use this robust and reliable selector switch head from Eaton as an actuator to initiate and control functions on electrical applications. The spring return means you can use it as a momentary switch, meaning it will stay in the selected position for as long as you hold it there, returning to the safe or original position when released. Install this product to control your lighting settings in restrooms and corridors.

• Titanium bezel is robust and resistant to corrosion, making it suitable for use in humid conditions like industrial kitchens
• Switch selector head includes fixing adaptor for easy installation with contact clocks and LEDs (light-emitting diodes)
• IP66 (ingress protection) rating of the front elements indicates the protection of internal wiring and contacts against dust and high-pressure water jets

Is this selector switch automatic?

This selector switch head from Eaton isn't automatic. It's a momentary switch that allows you to manually control the different functions of electrical equipment. It has three positions, so you can select the same number of different settings.

Note

Eaton formerly known as Moeller

Datasheet - Eaton M22-WK3
