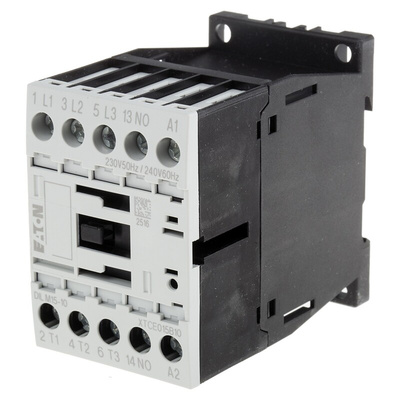

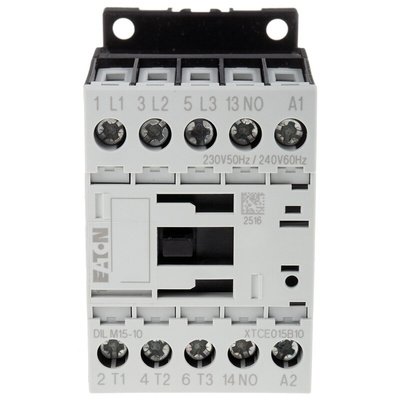

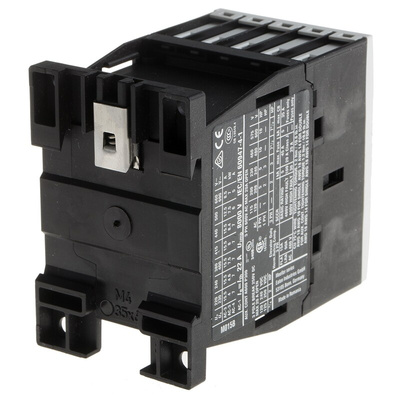

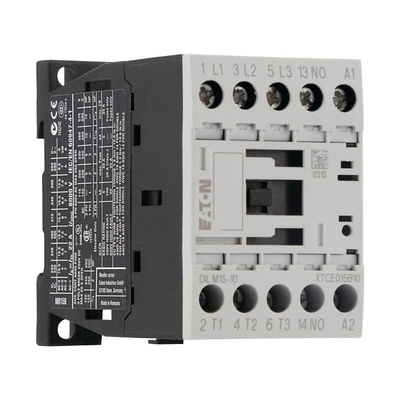

290058 DILM15-10(230V50HZ,240V60HZ), Eaton Contactor, 230 V ac Coil, 3-Pole, 15 A, 7.5 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 690V AC Rated Insulation Voltage, Screw Terminals - DILM Series - 290058 DILM15-10(230V50HZ,240V60HZ)

Looking for a reliable switching solution for your industrial AC motors? Give the job to this contactor from Eaton. It uses a low control voltage to turn large devices like motors and pumps on and off, reducing the risk of hazards from overvoltage. Thanks to a power rating of 7.5kW, this unit is well-suited to heavy-duty applications. It performs reliably in temperatures ranging between -25°C and +60°C. That means you can be sure it will hold its own in demanding conditions such as those you'd expect in the automotive industry.

Features & Benefits

• Compact dimensions of 68 (L) x 45 (W) x 117mm (D) for space-efficient installation in confined setups
• Low heat loss of 3W for energy efficiency and high productivity
• Accommodates wire sizes between 18 and 14AWG for use in single and double cabling systems
• Finger-proof and back-of-hand-proof to prevent user contact with live parts and improve safety

How do I link cables to this contactor?

This unit has screw terminals that make it easy to wire up using an ordinary screwdriver.

Note

Eaton formerly known as Moeller

Contactor,7,5kW_400V,AC-operated Data Sheet

Instruction Sheet - DILM15

Catalogue - Motors Starters, Contactors
