121462 M22-PVT45P, Eaton M22 Series Latching Emergency Stop Push Button, 22mm Cutout, IP67

Eaton Emergency Stop Push Button Heads - M22 Series

The RMQ-Titan emergency stop pushbuttons are available as palm switches with a diameter of 45mm. These pushbuttons are available as a twist release, key release, illuminated with standard LED or with mechanical switch position display in the centre of the actuation element.

Typical Applications

Designed for electrical automation and control environments, emergency stop button switches are commonly found in button stations where users may be sitting at a control desk, within suspended operator panels or in a control panel. Suitable for a wide range of emergency stop and safety applications including factory conveyor belts, escalators and control panels.

Features and Benefits

• Ergonomic mushroom head button design provides ease of use
• 22.5 mm cutout diameter
• Mechanical lifespan of over 100,000 operations
• Operating temperature of -25 to +70°C
• Low profile plastic design gives an attractive modern look and feel
• The high degrees of protection in the front (up to IP69K) and at the back (IP65) of these devices make the perfect choice for applications in which oil-tight protection from dirt or liquids is required.
• The push button head is supplied as a single unit, enabling easy installation for worldwide applications
• Turn to release, pull to release and key reset models available
• Modular M22 series features adaptable functionalities
• Tamper proof in compliance with EN ISO 13850
• IP67/IP69 rated

What is the difference between a push button for emergency stop and a general-purpose push button?

A general-purpose push button switch is used for controls, e.g., starting machine operation or simply switching modes. However, a push button switch for emergency stop is mainly used as a safety measure to stop hazardous events.

Approvals

UL, CSA

Standards

IEC/EN60204

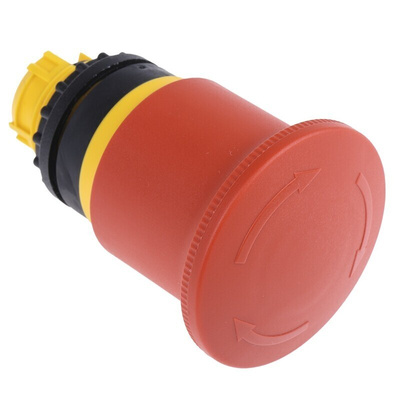

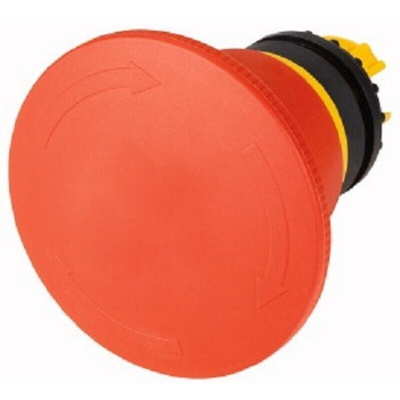

Eaton Emergency Stop Pushbutton, Red, 22mm Cutout - M22 Series - 121462 M22-PVT45P

Attach this red pushbutton from Eaton to machinery for use as an emergency stop switch. It's supplied with a bright yellow base, which makes the unit easy to see and identify as an emergency device. The mushroom shape of this unit gives it a broad and easily accessible head. Resistance to mechanical shock and corrosion extends its service life, even when it's used under extreme working conditions. This button is suitable for any applications that use low-voltage switching technology, including electrical engineering applications and industrial safety systems.

• Made from hardwearing plastic that's corrosion-resistant for improved longevity
• IP67 (ingress protection) rating indicates it's completely dust-tight and protected against high-pressure water jets
• Latching mechanism with easy turn-to-release unlocking method for quick resetting
• Safe for either indoor or outdoor use

Does this pushbutton fit flush with a control panel?

No, it doesn't. This pushbutton is specifically designed to stick out from a control panel so you can spot it quickly and easily in the event of a safety hazard. It has a textured finish to its rim to ensure it's easy to grip.

Part of the Eaton E-Stop family

Note

Eaton formerly known as Moeller

Eaton RMQ Titan 45 & 60 mm Range

Datasheet - Eaton M22-PVT45P

Instruction Sheet - Series M22

Catalogue - RMQ-Titan Pilot Devices
