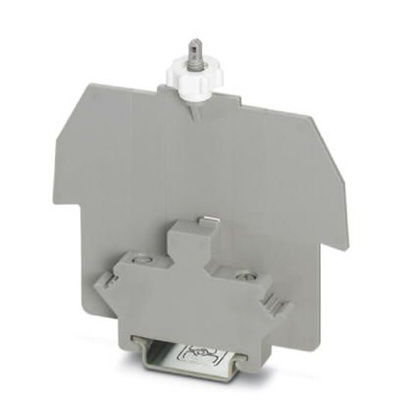

5022672, Phoenix Contact AP 3-TNS 35 Series End Cover for Use with DIN Rail Terminal Blocks

Phoenix Contact Cover Accessory, Knurled Plastic Nut, 10mm Width - AP 3-TNS 35 - 5022672

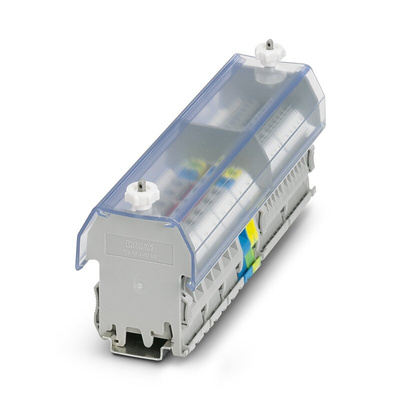

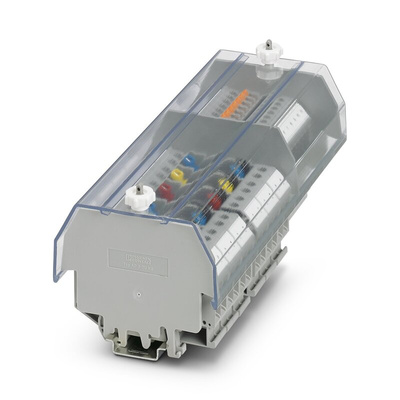

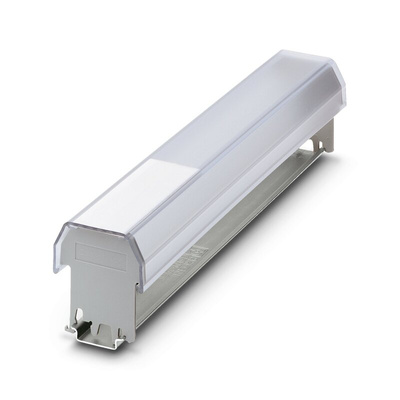

Need to protect your terminal blocks from tampering or breakage? Quickly complete an AP3 series cover (743-6493) with this handy end block from Phoenix Contact. It's fitted with a rear clip, so it simply snaps onto the ends of any standard NS 35 DIN rail. At the front of the block is a nut, which ensures covers are held securely in place. The nut's knurled plastic design makes it durable and easy to fit without reaching for specialist tools.
Made from polyamide, the block's body is strong and flame retardant to ensure burning stops in 30 seconds. This material is thermally stable, so it has no trouble handling operating temperatures between -5°C and +70°C. Contact covers and this accessory are useful in industrial and plant environments to safeguard workers from electric shocks and stop dust and liquid splashes from damaging terminal blocks.

Features & Benefits

• 10mm width to fit in narrow spaces on crowded rails
• Block is precisely shaped to seal the ends of your rail
• Cover system has a large surface area to provide labelling space

CLIPLINE complete accessories

Cover Profile Carrier for AP3 Sealable Data Sheet

Line Drawing - 5022672
