Fluke 810 Vibration Meter - Acceleration, 3 Axis, Виброметр

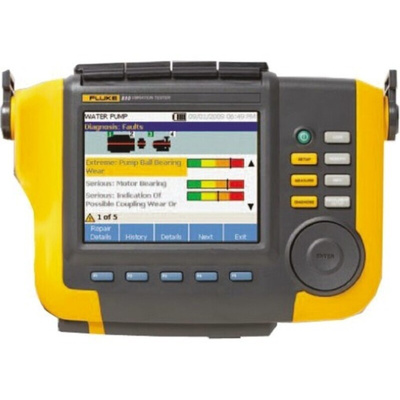

Fluke 810 Vibration Tester

The Fluke 810 Vibration tester is the most advanced troubleshooting tool for mechanical maintenance teams who need a quick answer. It takes the guesswork out of diagnosing most mechanical problems the Fluke 810 vibration meter and prioritise repair actions in simple steps. This vibration meter combines diagnosis, severity and repair recommendations to help you make a more informed decision to address critical problems correctly.

Diagnosing Problems

Most moving machinery failures come from four mechanical faults (bearings, misalignment, unbalance, looseness). This vibration meter has an auto diagnostic program, based on years of baselines collected by vibration experts. and more focus on maintenance efforts on the root cause, reducing unplanned downtime. A Tri-axial accelerometer reduces measurement times by 2/3 over single axis accelerometers and allows accurate measurements by a technician with minimal training.

Why buy the Fluke 810 over the Fluke 805 vibration meter?

The 805 vibration meter is a hand-held frontline troubleshooting that provides highly reliable, repeatable, accurate ways of measuring bearings, overall vibration and temperature. It can quickly assess the condition of a bearing with a readout from 0-16 and covers most machine types.

The 810 is a more advanced vibration meter than the 805, but still hand-held, the acts as a diagnostic tool that can solve problems on the spot. Vibration measurement can then prevent a machine from breaking and causing unnecessary damage and costs, all this can be done without any prior machine history. It locates vibration and diagnoses most mechanical faults (bearings, misalignment, unbalance and looseness).

You would choose the Fluke 810 vibration meter for its diagnostic power as it can diagnose the specific follow up requirements and location of the fault.

Features and Benefits

On-board identification and location of most common vibration mechanical faults reducing downtime.

Fault severity scale with four severity levels helps you prioritize maintenance work

Repair recommendations advise technicians on corrective action

On-board context-sensitive help provides real-time tips and guidance to new users

2GB expandable onboard memory provides enough space for your machinery’s data

Self-test function ensures optimal performance and more time on the job

Laser tachometer for an accurate machine running speed promotes confident diagnoses

Tri-axial accelerometer reduces measurement time by 2/3 over single axis accelerometers

Viewer PC Software expands data storage and tracking capacity

What's Included?

Fluke 810 Vibration Tester

Tri-axial accelerometer, magnet mount, mounting pad kit with adhesive, accelerometer quick-disconnect cable

Laser tachometer and storage pouch

Smart battery pack with cable and adapters

Shoulder strap and adjustable hand strap

Viewer PC software

Mini USB to USB cable

Getting Started Guide, illustrated quick reference guide

Users Manual CD-ROM

Carrying case

FLUKE Vibration Meter, Lithium-Ion Battery, 1% Amplitude Non-Linearity - FLUKE 810

Grab this vibration meter from FLUKE to get on top of shaky performance in your industrial setup. It's an ideal option for investigating bearing failures and misalignment in fans, motors and pumps. The device measures acceleration up to 80g to paint a clear picture of movement in your components. Stainless steel casing shields the assembly from bumps and scuffs you'd expect from persistent use in harsh settings. A carrying case is included for added protection and easy transportation.

Features & Benefits

• Hermetic sealing means it's air-tight and performs under pressure
• Safe to use in industrial environments, thanks to an operating temperature range of 0°C to +50°C
• Backlit LCD screen for a clear display in dim light
• Rechargeable battery pack with 8-hour life for all-day measuring in the field

Applications

• Factory automation
• HVAC systems
• Processing and packaging plants

Is this product compatible with computer software?

Yes, this vibration meter is supplied with Viewer PC software that makes it simple to create reports, import data and examine information in more detail.

What's the benefit of the unit's tri-axial accelerometer?

When compared to single-axis devices, tri-axial accelerometers take readings in two-thirds of the time, so you get speedy results.
