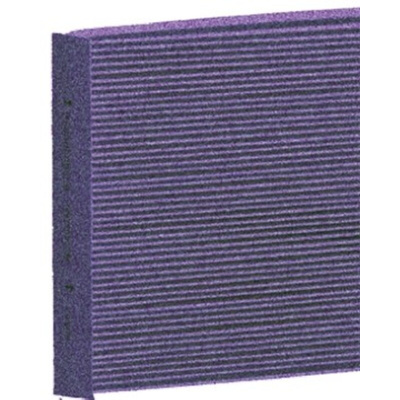

Filter Mat 18611600035, Pfannenberg Fan Filter, Synthetic Fibre Filter, 166 x 156mm, Фильтр

Pfannenberg 4th Generation High Air Flow Filter Fans

The filter fan has a new-to-the-market pleated fabric filter and louvre design that gives a high airflow at IP55. Its unique, patented water and dust pre-separation in the lamellas ensures that the majority of water and dust never reach the filter mat, extending its lifetime and therefore reducing the maintenance requirements. The "Click and Fit" design eliminates the need for fixings, providing hardware-free installation and filter mat changing, giving a unique user-friendly product. The new filterfan generation comprises IP54 variants, which filter to the improved G3 specification, and IP55 versions capable of G4 level filtration, with EMC versions of both. It features a new, patented 4-corner locking / fastening system; the terminal is of a cage clamp design and its position is changeable through 90° step turns to accommodate differing wiring directions. The units in the range are completely reversible to either introduce or extract air from the enclosure. Provision is made for mounting a thermostat on the rear face of all exhaust filters to reduce energy consumption. IP55 variants are also UV stable and suitable for use in outdoor applications without any extra protection. The cutouts are compatible with the previous generation and with those used by major competitors.

Features and Benefits

Extremely high air flow (highest in the market)
Reversibility
Click and fit design
High filter life
Fully certified
25 design patents
Colour: RAL 7035 (except Manu Part No suffix “50” : RAL 9011 / Black)
Manu Part No prefix "PFA" indicates a snap fit exhaust filter
Manu Part No suffices 1055 & 2055 indicate IP54, suffix 3055 indicates IP55

Note

For IP54 and IP55 fans the cut out tolerance is 0 to 1mm where panel thickness is less than 2mm and +1 to +2mm where panel thickness is greater than 2mm and less than 3mm. For EMC-shielded fans the tolerance is +/- 0.5mm where panel thickness is less than 3mm.
Pfannenberg's latest 4th Generation high air flow snap filter fans and filters are designed to fit the same apertures as Pfannenberg's 3rd Generation fans and filters.

Approvals

UL, GOST

Filter Mat

Pfannenberg filter mats can be used in both exhaust filters and filter fans. These filter mats are IP55 offering great performance while still maintaining high airflow. This filter mat can be used with any size 3 Pfannenberg exhaust filter or filter fan. Pfannenberg filter mats when used with filter fan filter dirt coming in the control cabinet to keep the working components clean. When used in an exhaust filter they filter the dirt out of the air being expelled from the cabinet.

IP55
Suitable for all Size 3 Pfannenberg products
High airflow (highest in market)
High Filter life

Product Application Information

Suitable for use with Pfannenberg Size 3 exhaust filters and filter fans.

Pfannenberg Filterfan 4th Generation - Comparison of the unit sizes

Filter mats for filterfans and exhaust filters
