LC1D09EL, Schneider Electric LC1D Series Contactor, 48 V dc Coil, 3-Pole, 9 A, 3NO, 690 V ac/dc, Контактор

Schneider Electric 3 Pole Contactors - LC1 Range

Schneider Electrics LC1 contactors combine long mechanical and electrical life to offer a highly reliable contactor. The LC1 contactors offer quick and simple setup while maintaining compliance with international standards.

Features and Benefits

• Typically, applications include resistive loads and motor control
• Highly reliable
• Excellent quality
• Easily installed accessories
• Built-in coil suppression
• 3 NO poles
• 1 NO + 1 NC auxiliary contact composition
• Operating time when closing
• Contactors suffixed BL accept front mount auxiliary contact blocks but only the 2-contact version, they do not accept side mounted contacts

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

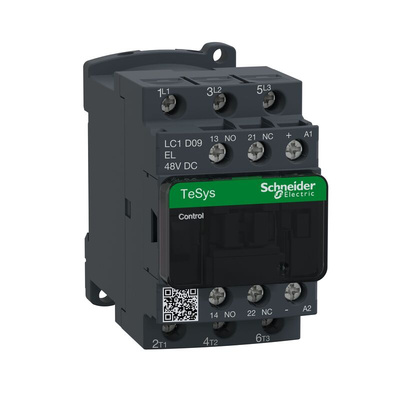

Schneider Electric Contactor, DC Low-Consumption Control Circuit Type, Screw Terminals - TeSys D Series - LC1D09EL

Use this contactor from Schneider Electric to reliably switch power to your industrial conveyor. It's designed to repeatedly turn demanding motor loads on and off, making it a practical choice for a busy carousel. To minimise the chance of a fire spreading in busy areas, the unit only burns for a maximum of 30 seconds if it catches alight. A rated impulse withstand voltage of 6kV blocks the path of short circuits, so it cuts down on the risk of equipment damage. For protection against knocks and dust in harsh settings, this contactor comes with a handy cover.

Features & Benefits

• End-of-life optimised as up to 59% of its components are recyclable
• IP20-rated front face is touch-proof and protected against objects larger than 12mm
• Multi-standard screws for easy operating and system integration

Applications

• HVAC equipment
• Irrigation systems
• Lighting installations
• Lifting and hoisting devices

What's the maximum operating rate I can expect from this contactor?

A maximum operating rate of 3,600 cycles per hour in temperatures of +60°C means you can rest assured this switching device keeps up with demanding systems.

LC1D09EL TeSys D contactor Data Sheet
