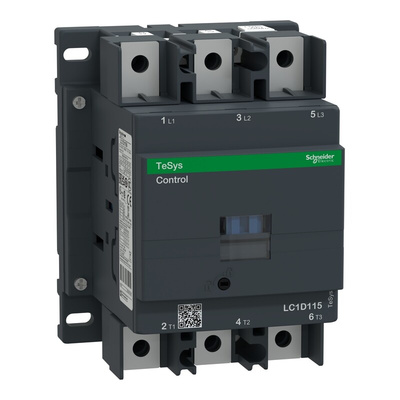

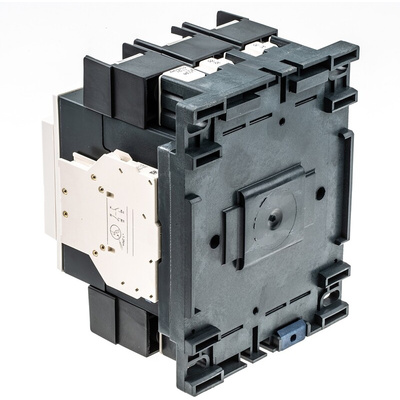

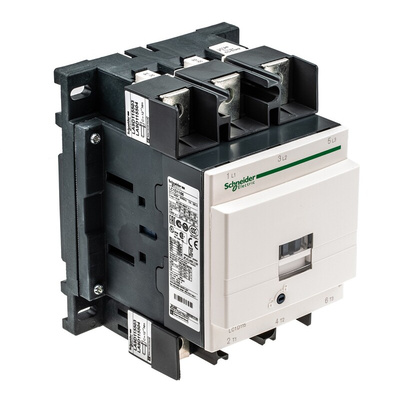

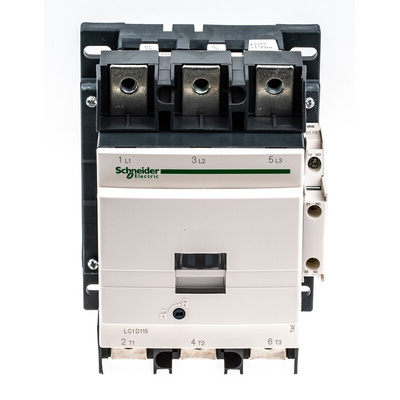

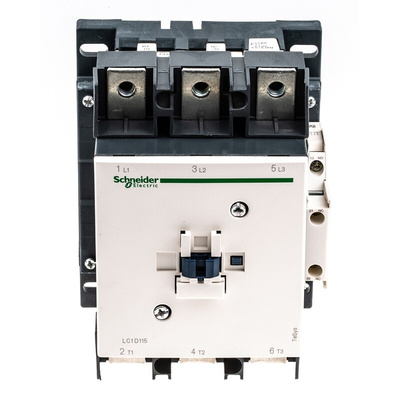

LC1D1156F7, Schneider Electric LC1D Series Contactor, 110 V ac Coil, 3-Pole, 115 A, 3NO, 1 kV ac, 690 V dc, Контактор

Schneider Electric Contactor, 3 Pole, 1kV AC/690V DC Contact Voltage Rating - TeSys D Series - LC1D1156F7

Install this contactor from Schneider Electric's TeSys D range to support the reliable function of your control systems. As it offers 8 million mechanical operating cycles, you can rely on the hardwearing component for consistent performance. Added switching capability comes courtesy of the integrated auxiliary contacts, while a bidirectional peak limiting diode suppressor offers extra coil protection. You can choose between panel mounting or assembly on a DIN rail for customised installations. The unit's compact dimensions of 158 (L) x 120 (W) x 136mm (D) mean it fits easily in busy setups.

Features & Benefits

• Flexible control circuit for easy compatibility
• IP20 rating indicates finger-safe terminals to increase electric safety
• Rapid contact opening and closing times for effective on and off switching
• Wide operating temperature range between -5°C and 60°C for use in tough conditions

Applications

• Motor starters
• Transformers
• Automated industrial applications
• Medical equipment
• Agricultural machinery

What do AC1 and AC3 mean on this contactor?

These terms indicate the utilisation categories for the contactor. AC1 applies to all AC devices with a power factor of at least 0.95 and can be used for resistive loads, heating and distribution. AC3 category is used for squirrel cage motors such as those used with lifts and HVAC units.
