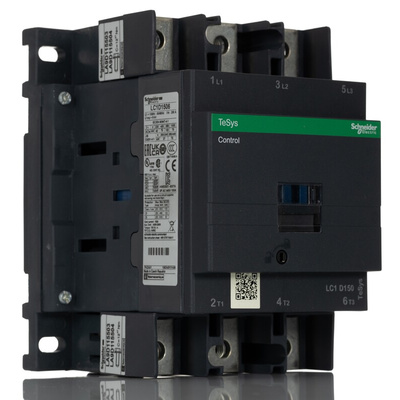

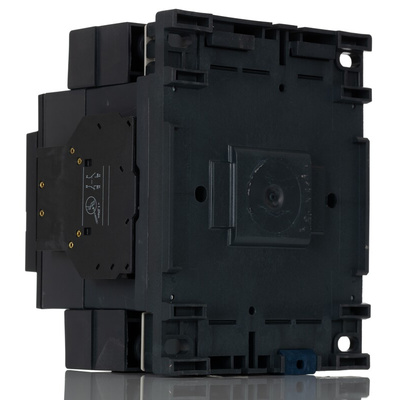

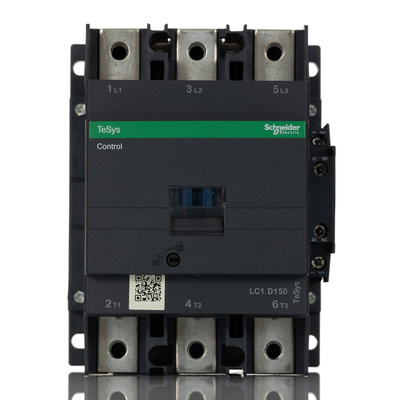

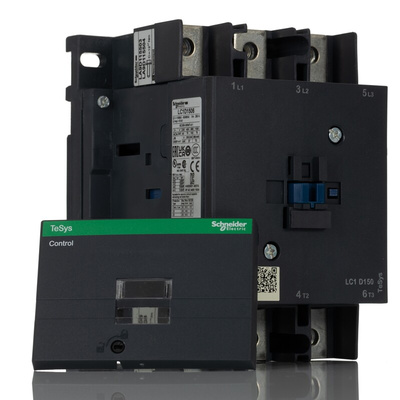

LC1D1506F7, Schneider Electric LC1D Series Contactor, 110 V ac Coil, 3-Pole, 150 A, 3NO, 1 kV ac, 690 V dc, Контактор

Schneider Electric LC1D TeSys D Contactors.

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits.

• Built-in auxiliary contacts for added switching capability.


• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings.


• Can be panel mounted with screws or DIN Rail mounted.


• Bidirectional peak limiting diode suppressor to protect the coil.


• Easily installed accessories.


• Flexible control circuit to suit a wide range of applications.

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

• Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.


• AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.


• AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action.


• Front mount dust tight auxiliary contact blocks.


• Pneumatic time delay blocks.


• Transient voltage surge suppressors.


• Interface modules and electronic timers.


• Mechanical latching blocks.

Is the TeSys D range a double break pole type contactor?

• Yes, the Tesys D range uses linear translation movement that provides double breaking of the poles.

Schneider Electric Contactor, 8kV Impulse Withstand Voltage, 1.4kA Rated Breaking Capacity - LC1D Series - LC1D1506F7

For safe control of your high-power equipment, turn to this contactor from Schneider Electric. It falls into the AC-1, AC-4 and AC-3 utilisation categories, making it a versatile unit that you can use to switch squirrel cage motors and non-inductive loads. The unit's power rating of 100kW shows that it's fit for heavy-duty applications. For safe signal transmission, it comes with a suppressor module to quell transient voltages. The device is designed for DIN rail mounting, so you don't need complex installation tools to set it up.

Features & Benefits

• Mechanical durability of 8 million cycles assures you of long-lasting service
• Compact dimensions of 158 (H) x 120 (W) x 136 (D) make it a good fit for setups with limited space
• Withstands up to 8kV of impulse voltage without suffering damage, so it's suitable for applications that are prone to power spikes

Applications

• Lifts and escalators
• Agricultural equipment
• Mechanic's workshops

Is this contactor flame-resistant?

Yes, the unit stops burning in 30 seconds or less in the event of a fire, helping to limit the spread of flames.
