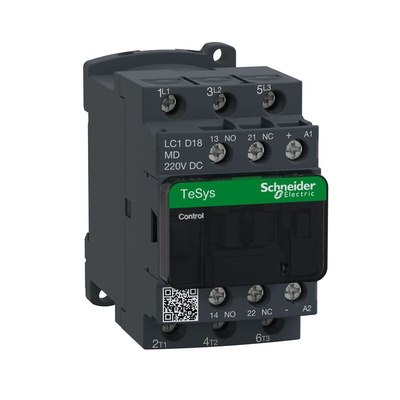

LC1D18MD, Schneider Electric LC1D Series Contactor, 230 V dc Coil, 3-Pole, 18 A, 3NO, 690 V ac/dc, Контактор

7447311
Номер производителя: LC1D18MDПроизводитель: Schneider Electric
Цена за шт.
45240.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Schneider Electric 3 Pole Contactors - LC1 Range

Schneider Electrics LC1 contactors combine long mechanical and electrical life to offer a highly reliable contactor. The LC1 contactors offer quick and simple setup while maintaining compliance with international standards.

Features and Benefits

• Typically, applications include resistive loads and motor control
• Highly reliable
• Excellent quality
• Easily installed accessories
• Built-in coil suppression
• 3 NO poles
• 1 NO + 1 NC auxiliary contact composition
• Operating time when closing
• Contactors suffixed BL accept front mount auxiliary contact blocks but only the 2-contact version, they do not accept side mounted contacts

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Schneider Electric Contactor, 10kW Power Rating, Over 10MΩ Insulation Resistance - LC1D Series - LC1D18MD

Need to safely manage motor switching in your industrial settings? Trust the job to this contactor from Schneider Electric. It has a coil that generates a magnetic field to close the contacts when it's energised, giving you precise control of your machine. The unit is designed to handle heavy-duty applications, thanks to its 10kW power rating. It's also constructed to ensure safe operation, with a protective cover and finger-safe terminals to stop you from making contact with live parts. This component weighs just 490g, so it's easy to handle during installation.

Features & Benefits

• Withstands operating temperatures between -40°C and +60°C, making it safe for use in demanding conditions
• DIN rail mounting is simple and doesn't need complex tools, saving time and hassle
• Integrated suppression module prevents damage from transient voltages
• Mechanical durability of 30 million operating cycles assures you of long-term performance

Applications

• HVAC systems
• Construction sites
• Automotive industry

What systems can I use this contactor in?

This unit falls into the AC-1, AC-3 and AC-4 utilisation categories. This means that you can use it for squirrel cage motors, as well as non-inductive loads.

Техническая спецификация
pdfLC1D18MD TeSys D contactor
pdfProduct Change Notice (PCN)
pdfGreen Premium - Product Environmental Profile
pdfProduct Environmental Profile
pdfInstruction Sheet - LC1D Series
Верификация Better World:
Green Premium
Вид монтажа:
Крепление на DIN рейку
Глубина:
95мм
Диапазон:
TeSys D
Длина:
77мм
Катушка напряжение:
230 В пост. тока
Количество вспомогательных контактов:
2
Количество полюсов:
3
Конфигурация вспомогательных контактов:
1NO + 1NC
Конфигурация полюса и сброса:
3P
Напряжение управления:
220 В пост. тока
Номинальное напряжение контакта:
690 В перем./пост. тока
Номинальный ток контакта:
18 A
Нормальное состояние конфигурации:
3NO
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-40°C
Серия:
LC1D
Тип клеммы:
Винт
Товар Better World:
Да
Ширина:
45мм
