LC1D258M7, Schneider Electric LC1D Series Contactor, 220 V ac Coil, 4-Pole, 40 A, 2NO + 2NC, 690 V ac/dc, Контактор

7447346
Номер производителя: LC1D258M7Производитель: Schneider Electric
Цена за шт.
42978.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

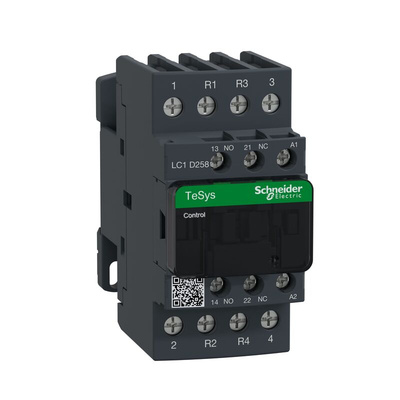

Schneider Electric Contactor, 425g Weight, Overvoltage Category III - TeSys D Series - LC1D258M7

When you're working with resistive loads, trust this contactor from Schneider Electric to handle the heavy lifting. Its job is to repeatedly open and close the circuit, supplying just what your appliances need to operate safely and reducing the risk of fire outbreaks caused by electrical arcs. Thanks to compact dimensions of 105 (H) x 45 (W) x 99mm (D), you'll have no trouble fitting it in setups where space is limited. You can either mount it on a panel or DIN rail, so it's an adaptable workmate that flexes to your needs.

Features & Benefits

• 40A current rating makes it suitable for high-current-consuming applications
• Low power loss of 3.2W per pole for energy efficiency and increased productivity
• IP20 rating indicates that it's protected from objects larger than 12mm in size
• Screw termination method is simple and doesn't need complex tools

Applications

• Electric heating systems
• Industrial lighting
• Motor-powered machinery

How do I maintain this contactor?

To keep this unit in top shape, regularly check its contact points for dust and debris. Clean off these contaminants with a low-pressure dry air stream. It's also important to check that the mounting and terminal screws are tightly fastened, especially in vibrating settings.

Техническая спецификация
pdfLC1D258M7 TeSys D contactor
pdfLC1D258M7-Datasheet
pdfProduct Change Notice (PCN)
pdfInstruction Sheet - LC1D258M7
pdfProduct Environmental Profile
Верификация Better World:
Green Premium
Глубина:
99мм
Диапазон:
TeSys D
Длина:
105мм
Катушка напряжение:
220 В перем. тока
Количество вспомогательных контактов:
2
Количество полюсов:
4
Конфигурация вспомогательных контактов:
1NO + 1NC
Номинальное напряжение контакта:
690 В перем./пост. тока
Номинальный ток контакта:
40 A
Нормальное состояние конфигурации:
2NO + 2NC
Серия:
LC1D
Тип клеммы:
Винт
Товар Better World:
Да
Ширина:
45мм
