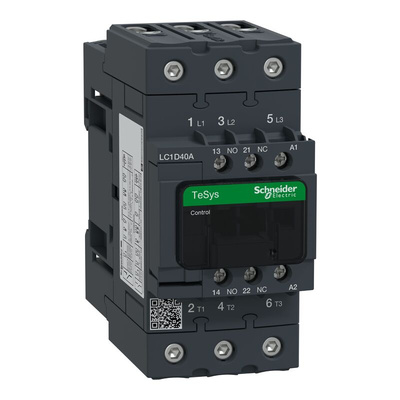

LC1D40AU7, Schneider Electric LC1D Series Contactor, 240 V ac Coil, 3-Pole, 40 A, 3NO, 690 V ac/dc, Контактор

Schneider Electric Contactor, 690V AC/DC Contact Voltage Rating, 230V Coil Voltage - TeSys D Series - LC1D40AU7

Switch circuits off and on efficiently with this contactor from Schneider Electric's TeSys D range. It can be opened in 4 to 19ms and closed in 12 to 26ms, so you can be sure of precise control. The high operating rate of 3600 cycles per hour at +60°C suits high-powered motors. For longevity, the unit's been tested for safe use up to 20 million cycles with a mechanical load. It's simple to integrate it into your existing control system thanks to the screw terminals and the flexible choice between DIN-rail or panel mounting.

Features & Benefits

• IP20 rating indicates it's touch-proof and protected against objects over 12mm
• Wide operating temperature range between -5°C and +60°C for use in harsh industrial settings
• TH protective treatment prevents corrosion from condensation and fungal growth, so it's suited to damp environments
• Dimensions of 122 (length) x 55 (width) x 120mm (depth) use minimal space in your system

Applications

• Commercial lighting systems
• Manufacturing industry
• Industrial facilities
• Electric motors

What accessories can be used with this contactor?

You can use several accessories with this versatile contactor, including pneumatic timers (394-9835), surge suppressors (395-0043) and interlocks (312-4008).

LC1D40AU7 Contactor

Datasheet

Product Change Notice (PCN)

Catalogue - Innovative & Connected Solutions For Motor Starters

Instruction Sheet - LC1D40AU7

Line drawing - LC1D40AU7

Product Environmental Profile
