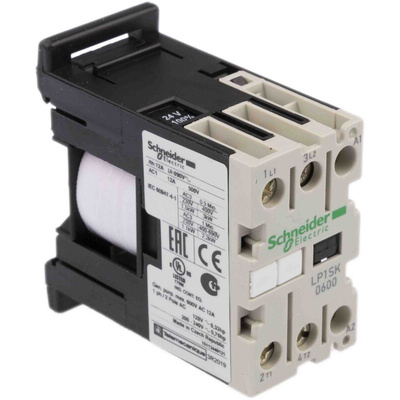

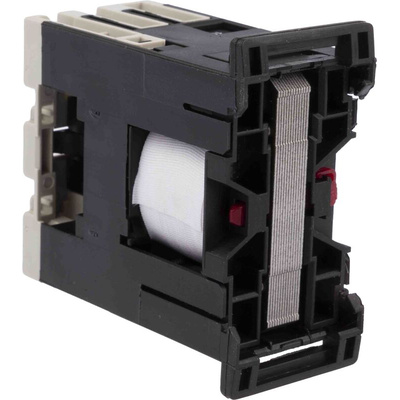

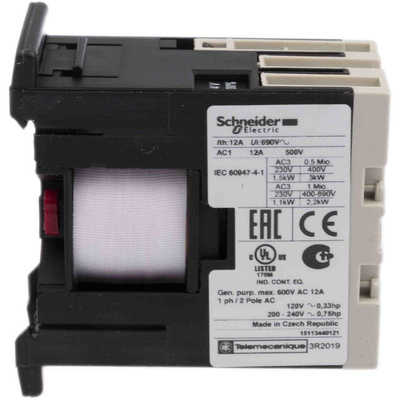

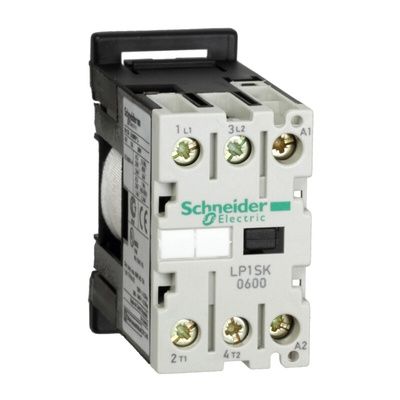

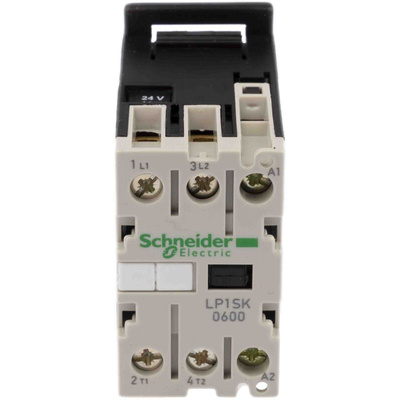

LP1SK0600BD, Schneider Electric LP1S Series Contactor, 24 V dc Coil, 2-Pole, 12 A, 2NO, 690 V ac, Контактор

Schneider Electric Contactor, Screw Termination, 690V AC Contact Voltage Rating - LP1S Series - LP1SK0600BD

Turn your electrical circuits on and off using this contactor from Schneider Electric. It has a hold-in power consumption of 2.2W for energy efficiency. A tightening torque of 0.8Nm ensures the device achieves a firm hold on the mounting surface. You can secure it using a simple screwdriver and it won't shake loose, even in vibrating systems. A double-pole configuration means this unit can control two phases simultaneously, minimising the components and wiring your application needs.

Features & Benefits

• Mechanical lifespan of up to 10 million cycles for long-term performance
• Low weight of 132g so it doesn't add excess load to your setup
• IP20 rating indicates it's touch-proof and shielded from objects larger than 12mm
• Wide operating temperature range between -20°C and +50°C for use in extreme environments

Applications

• Industrial compressors
• Water pumps
• Heating furnaces

What does this contactor's AC-1 utilisation category stand for?

This category applies to all AC loads where the power factor is 0.95 or more. When closed, AC1 contactors tend to generate an inrush current that's five times higher than the rated load current. They're suitable for use with resistive loads.

Approvals

CSA, UL.

Standards

VDE 0660, BS 5424, NF C 63-110, IEC 60947.
