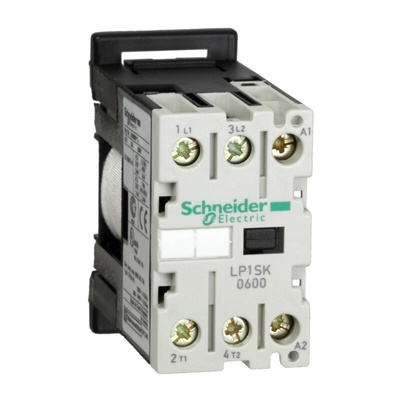

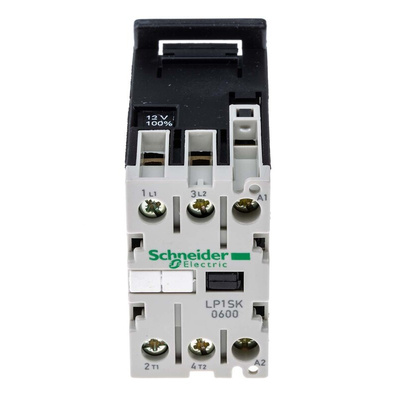

LP1SK0600JD, Schneider Electric LP1S Series Contactor, 12 V dc Coil, 2-Pole, 12 A, 2NO, 690 V ac, Контактор

Schneider Electric | LC1D TeSys K Mini Series | Contactors

TeSys K Miniature Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The TeSys SK contactors offer quick simple setup while maintaining compliance with international standards. A special armature structure design allows all devices in the range to have the same physical size and panel footprint for convenience.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Coil with rectifier incorporated
• Easily installed accessories
• Instantaneous auxiliary contact
• Flexible control circuit to suit a wide range of applications
• High-fault short circuit current ratings provide the flexibility to select any component

Applications:

• Industrial control systems
• Switching contractors or relay coils
• Powering control and signalling switches

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.
Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

Is the TeSys SK range a double break pole type contactor?

Yes the TeSys SK range uses linear translation movement that provides double breaking of the poles.

Approvals

UL, CSA

Standards

IEC947, VDE0110, NFC63-110

Schneider Electric Contactor, Insulated, 132g Weight - TeSys K Series - LP1SK0600JD

Trust this contactor from Schneider Electric to reliably switch high-current components on and off. It's just what you need for hard-working heating systems, thanks to its fast-acting contacts that immediately spring to action. The unit minimises the risk of electric arcs, so cuts down on the chance of power surges causing damage to equipment. A wide operating temperature range between -20°C and +50°C means you can put it to work in harsh conditions. With a TC protective coating, it's at minimal risk of corrosion when used in damp settings. To boost plant safety by protecting you from electric shocks, the contactor is insulated. Assembly is done in a jiffy by simply clipping it onto a DIN rail.

Features & Benefits

• End-of-life optimised for maximum recovery of materials and components
• IP2X-rated housing is protected against fingers, as well as tools larger than 12.5mm
• Minimal panel footprint, thanks to its compact dimensions of 56 (H) x 27 (W) c 55.5mm (D)

Applications

• HVAC equipment
• Water management systems
• Lifting and hoisting equipment
• Automated assembly lines

What's the switching rate of this contactor?

With a maximum operating rate of 1,200 cycles per hour, you can count on this device to keep up with the needs of demanding circuits.

LP1SK0600JD Datasheet

Product Environmental Profile

Instruction Sheet - LP1SK0600JD
