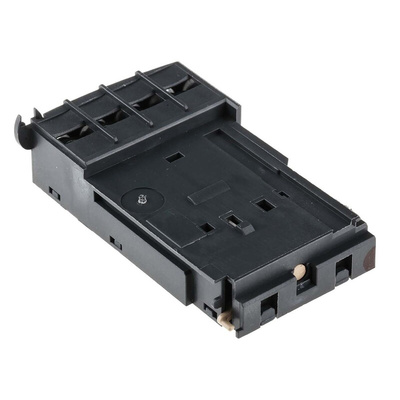

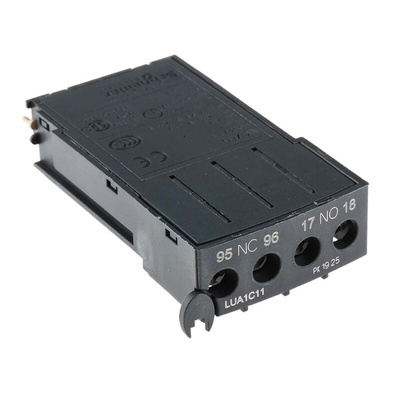

LUA1C11, Schneider Electric TeSys Signalling Contacts

Schneider Electric Auxiliary Contact, NO/NC, 250V AC/DC - TeSys Ultra Series - LUA1C11

Need a signalling contact for a motor starter? This auxiliary contact from Schneider Electric's TeSys range lets you know when an electrical fault occurs. Its modular design means you can quickly plug it into a motor control with no need for tools or wiring. The compact device calls for minimal space, so it can be easily packed in your control panel. You can use it to monitor either the load running mode of a motor or the operational status of another protection device, making it a versatile choice.

Features & Benefits

• User-friendly and compatible with most power bases from the Schneider Electric TeSys Ultra range
• Quick panel building, thanks to its fast assembly time
• Manufactured to have minimal environmental impact and reduce waste production

Applications

• Mining and mineral processing
• Industrial automation
• Heating and ventilation
• Robotics

Where do I install this signalling contact on a power base?

You have a choice of two locations when installing this signalling contact on a power base. It can either be placed in a plug-in box or on the side of the power base in a mounting box.

Schneider Electric TeSys U

The TeSys U is a modular system for motor control; it enables the user to create a customised solution for their control requirements, from a series of standard modules. The plug-in modules allow the assembly and wiring before the selection of motor protection parameters and control voltages, they can be created or changed in seconds by changing the plug-in modules. A host of DOL starting applications can be catered for.

• Faster design with fewer components needed


• Quicker panel build with faster assembly time and fewer wires per starter


• Space saving 45mm width up to 32A (even for reversing) allowing smaller panels


• Flexible and upgradeable with plug-and-play function modules


• Voltage and protection parameters can be determined after assembly and wiring


• Broad band electronic control unit provides improved overload protection with fewer components


• Expandable plug-and–play diagnostics


• Total co-ordination for fast return to service after a short circuit fault

Tesys model U is easy to select:

First choose a Power Base- 12A or 32A, direct on line or reversing. The power base includes 2 auxiliary contacts.
Then choose the plug-in protection module by motor full load current and control voltage required.
Additional plug in functions can be selected and added at any time.
The plug-in bases can use any LU9 type blocks see stock no. 493-8779 for base option
