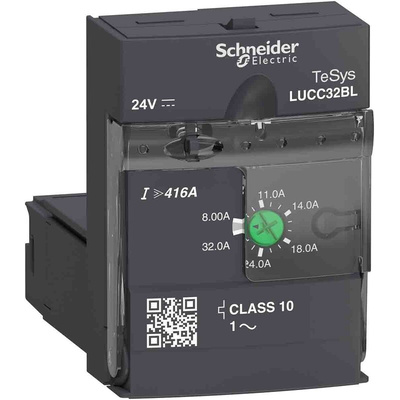

LUCC32BL, Schneider Electric Advanced Motor Starter, 7.5 kW, 690 V ac, 1 Phase, IP40, 8 → 32 A

Schneider Electric Advanced Motor Starter, 7.5kW Power Rating, 24V DC Control Voltage - U-Line Series - LUCC32BL

Safely start and stop your industrial equipment with this motor starter from Schneider Electric. The advanced control unit protects your machinery against damage from current overload upon activation and deactivation. It also has an impulse withstand voltage of 6kV, so it can resist sudden voltage surges. With a broad operating temperature range of -25°C to +70°C, this device is suitable for use in demanding environments. It has a plug-in mount system that makes it quick and easy to install without the need for specialist tools.

• IP20 rating means it's touch-proof and protected from objects larger than 12mm
• Power rating of 7.5kW for safe use in heavy-duty industrial applications
• Earth fault protection against damage from insulation faults to keep your equipment safe
• Compact width of 45mm saves space in enclosures
• Operating altitude of 2,000m for use in elevated settings

Applications

• Compressors
• Water pumps
• HVAC systems

How many phases does this starter have?

This motor starter is single-phase device, so it needs less wiring than multi-phase alternatives and doesn't take up much space.

Schneider Electric TeSys U

The TeSys U is a modular system for motor control; it enables the user to create a customised solution for their control requirements, from a series of standard modules. The plug-in modules allow the assembly and wiring before the selection of motor protection parameters and control voltages, they can be created or changed in seconds by changing the plug-in modules. A host of DOL starting applications can be catered for.

• Faster design with fewer components needed


• Quicker panel build with faster assembly time and fewer wires per starter


• Space saving 45mm width up to 32A (even for reversing) allowing smaller panels


• Flexible and upgradeable with plug-and-play function modules


• Voltage and protection parameters can be determined after assembly and wiring


• Broad band electronic control unit provides improved overload protection with fewer components


• Expandable plug-and–play diagnostics


• Total co-ordination for fast return to service after a short circuit fault

Tesys model U is easy to select:

First choose a Power Base- 12A or 32A, direct on line or reversing. The power base includes 2 auxiliary contacts.
Then choose the plug-in protection module by motor full load current and control voltage required.
Additional plug in functions can be selected and added at any time.
The plug-in bases can use any LU9 type blocks see stock no. 493-8779 for base option

LUCC32BL advanced control unit
