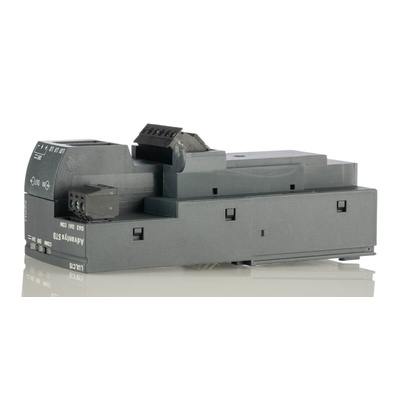

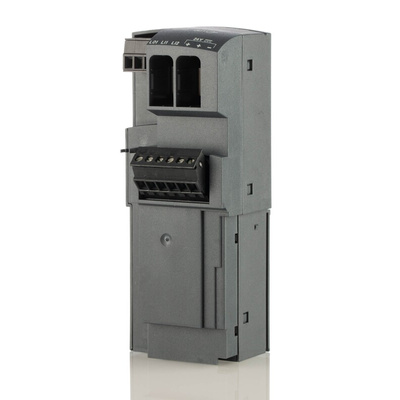

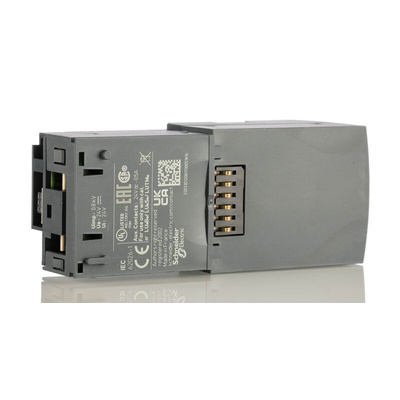

LULC15, Schneider Electric Communication Module, 500 mA

Schneider Electric Advanced Motor Starter, 24V DC Control, 500mA Current Rating - U-Line Series - LULC15

Regulate the startup of your electric motors using this advanced motor starter from Schneider Electric. It acts as a communication module that relays set voltage and current parameters to the machine. A simple plug-in design lets you mount the device in a control cabinet without the need for complex wiring. It has three LED indicators that show its operating status for quick configuration and diagnosis. You can also connect it to a PLC from the Advantys STB range using a firewire cable to enhance its performance.

Features & Benefits

• Wide operating temperature range between -25°C and +55°C for safe use in harsh industrial environments
• IP20 rating means it's finger-safe and protected against solid objects over 12mm
• Transmission rate of 800kbit/s for reliably rapid data transfer

Applications

• Industrial pumps
• Heating, ventilation and air-conditioning systems
• Conveyor belts
• Oil and gas industry

What type of communication signal does this motor starter use?

This versatile device uses standard CAN2.B and CAN2.0A communication port protocols for easy signal transmission between multiple devices.

Schneider Electric TeSys U

The TeSys U is a modular system for motor control; it enables the user to create a customised solution for their control requirements, from a series of standard modules. The plug-in modules allow the assembly and wiring before the selection of motor protection parameters and control voltages, they can be created or changed in seconds by changing the plug-in modules. A host of DOL starting applications can be catered for.

• Faster design with fewer components needed


• Quicker panel build with faster assembly time and fewer wires per starter


• Space saving 45mm width up to 32A (even for reversing) allowing smaller panels


• Flexible and upgradeable with plug-and-play function modules


• Voltage and protection parameters can be determined after assembly and wiring


• Broad band electronic control unit provides improved overload protection with fewer components


• Expandable plug-and–play diagnostics


• Total co-ordination for fast return to service after a short circuit fault

Tesys model U is easy to select:

First choose a Power Base- 12A or 32A, direct on line or reversing. The power base includes 2 auxiliary contacts.
Then choose the plug-in protection module by motor full load current and control voltage required.
Additional plug in functions can be selected and added at any time.
The plug-in bases can use any LU9 type blocks see stock no. 493-8779 for base option

LULC15 Advantys STB communication module
