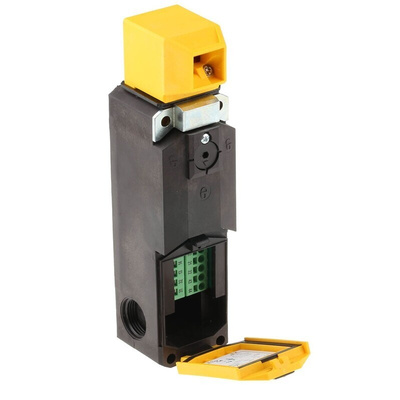

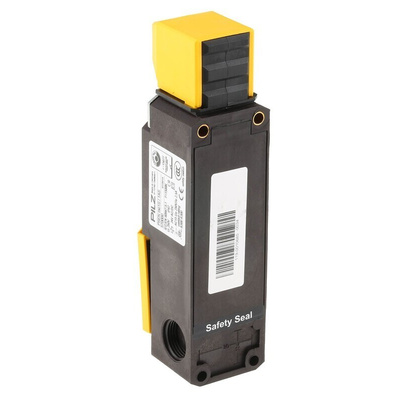

570000, Pilz PSENme Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc, Actuator Included

Pilz Safety Interlock Switch

The Pilz PSENmech mechanical power to lock safety interlock switch has a supply voltage rating of 24VAC/DC. It has 2NO safety and 2NC auxiliary DPST contacts. This is suitable for the safe monitoring of a movable guard. This safety switch is triggered if the guards are opened and the hazardous machine movement is stopped via an evaluation device. This switch prevents the safety gate from being opened unintentionally by using increased extraction force on the actuator.

Features and Benefits

Actuator type is standard
Flexibility and speed during installation plus high plant availability
Compact design
Up to four horizontal and four vertical approach directions
Innovative connection technology
Universal integration - possible to connect to all common control voltages
Built-in manipulation protection
Long service life
Robust design and high mechanical load capacity
Heavy-duty positive opening safety contacts with galvanic isolation
Wide operating temperature range
Easy to service cage clamp terminals
Thermal current is 2.5A
Connection type is spring clamp terminals
Conduit entry is M20

Certifications

IP67 protection
VDE 0660 T100 approved
EN 60947-1
VDE 0660 T200 approved
EN 60947-5-1
IEC 60947-5-1
GS-ET-19
EC certified
BG certified
CCC certified
cCSA certified
CE certified
